Home > Products > 50 Pin Connector > Tyco AMP Centronic Champ IDC Male Plug Type Connector 25 Pairs 0.085in With Straight Cable Outlet Cover
Tyco AMP Centronic Champ IDC Male Plug Type Connector 25 Pairs 0.085in With Straight Cable Outlet Cover
- SHENZHEN/GUANGZHOU
- T/T Credit Card
You May Like
-
TYCO RJ21 Straight Cable Exit Centronics Connector 25 Pairs Plug Type IDC Connector 2.16in Centerliner
-
TYCO AMP 50P Champ IDC Plug RJ21 Ribbon Cable Connector Certificated UL
-
Centronic TYCO AMP IDC Male 0.085in Pitch RJ21 Cable Champ 50P Connector With 180 Degree Plastic Cover
-
TYCO 229974-1 50 Way Champ Connector 0.085in Pitch Male Type RJ21 Cable IDC Connector With 180 Degree Plastic Cover
-
TYCO AMP 25 Pairs Plug Champ IDC 2.16mm Connectors
-
Tyco AMP 229974-1 RJ21 Side Entry 25 Pairs Plug Champ IDC 2.16mm Centerline Connector With Plastic Cover
Product Details
| Place of Origin | Guangdong, China | Brand Name | FUYCONN | |
| Model Number | FUY57123B-50P | Type | Other, 57 Centronic IDC Connector | |
| Application | Other, RJ21 Cable | Gender | Other, Male, Male |
Product Description

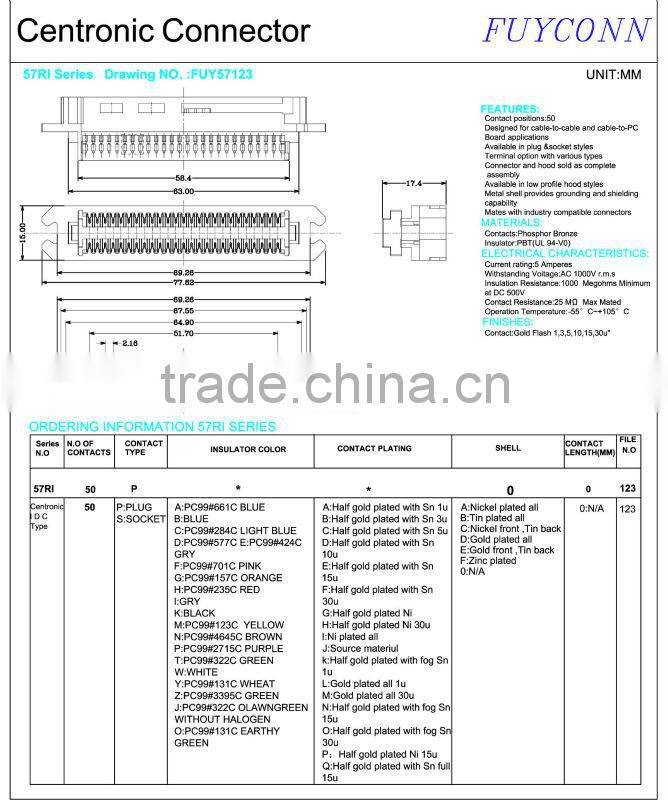

Specifications
Item No.: FUY57123B-50P1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
1)Product features:
Category: Connectors, Interconnects
Product Line:CENTRONIC/CHAMP
Connector Style: Female
Shell:PBT&Glass-fibre Reinforced
Orientation:Standard
Cable Exit Angle:180 degree
2)Mechanical Attachment:
Insulator Material:Thermoplastic
UL Flammability Rating: UL-94-V0
3)Terminal Related Features:
Certerline :2.16mm(0.85 in)
Number of Position: 64 pin
Contact Plating: Gold (A:5U,B:10U,C:15U,D:30U)
Contact Material: Copper Alloy

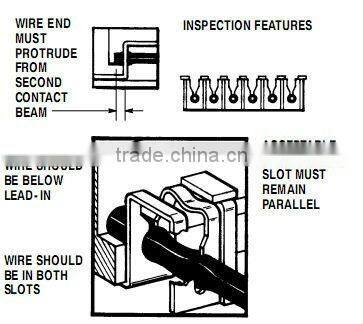

4)Typical Application of CHAMP Cable Connector
NOTE:1) Have any non-acceptables except this conditions.
Only if the slot is not specifically designed for a two-wire application.
2)Connectors must be fully mated and hardware evenly and firmly tightened.
5)Electrical Specifications
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
6)Packaging
Vacuum Tray with standard export carton
7)Application
All designed for use in industrial,commercial;
telecommunication systems;VDSL Teleccom Equipment ;
Computer Peripherals;healthcare, aerospace ;
Communication networks,automotive;data communications;
consumer devices; defense marine.
