DDK 25 Pairs Female Right Angle PCB Mounting Centronics Connector 50 Pins 2.16mm Pitch
US$ 1 - 2
/ Piece
1000 Pieces(Min. Order)
- Shenzhen / Guangzhou
- T/T Credit Card
You May Like
-
25 Pair Female Centronic Connector 50 Pin PCB DIP Right Angle Type
-
2.16mm Solder DIP Termination Centronic Male Connector PCB Right Angle 50pin
-
DDK Champ 25 Pair Female PCB Straight Solder DIP Termination 50 Pin Header Connector 2.16mm Pitch
-
2.16mm Champ DDK 50pos Female Solder DIP Termination Connector PCB Straight Mount
-
25 Pairs Female Receptacle Type DDK DIP PCB 50 Pin Header Connector 2.16mm
-
DDK PCB DIP Straight 25 Pair 50 Pin 2.16mm Female Socket Connector With Board Lock
Product Details
| Place of Origin | Guangdong, China | Brand Name | FUYCONN | |
| Model Number | FUY57001-50P | Type | Other, Centronics Connector, Right Angle PCB Connector | |
| Application | PCB | Gender | Female |
Product Description
Specifications

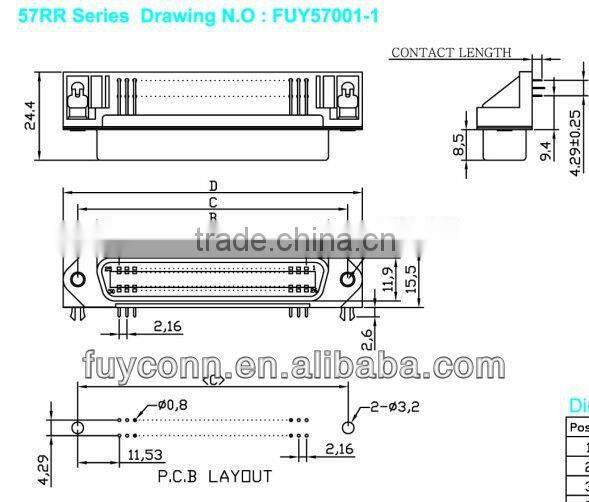

Item NO. FUY57001-50P1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features
Product Type: Connector
Product Line:CENTRONIC
Connector Style: Female
Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
PCB Mount Style: Right Angle
Orientation:Standard
Mechanical Attachment
Panel Attachment Style:Rear to Rivet
Insulator Material:Thermoplastic
Terminal Related Features
Certerline :2.16mm(0.85 in)

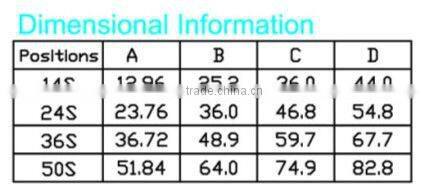

Number of Position: 14,24,36,50pin
PCB Mount Retention Type: Right Angle
Contact Plating: Gold (A:5u" ,B10u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style: Receptacle
Housing Material: Steel
UL Flammability Rating: UL 94V-O
Special Function
A:90°C DIP pan holes type
B:Pan holes,riveting
C:2.6mm “Z”Fork Board Lock
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
Technology Parameters
