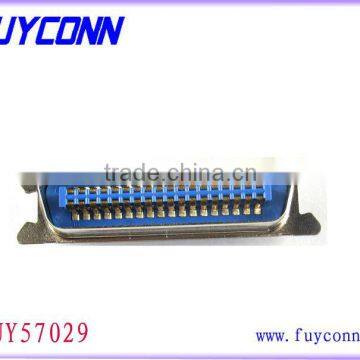

36P DDK Ribbon Plug Male Solder Wire Connector With Solder Cup Contact PBT Insulator
- Shenzhen / Guangzhou
- T/T Credit Card PayPal
You May Like
-
Solder Cup Contact 36 Pin Male Plug Header With Hard Connection DDK Ribbon Connector Certified UL
-
36 Way Solder Ribbon DDK Connector Male Plug 2.16mm Pitch MD Type Shell Black or Blue Insulator Header Certified UL
-
Centronic 36 Way Telecoms System Ribbon Connector DDK Solder Pin Male Plug Easy Type Header Certified UL
-
DDK Solder Type 2.16mm Pitch Brass Contact Male Header 36P Connector With Tope Cable Entry Matel Cover Certified ULE 346172
-
DDK 36 Pin Ribbon Cable Plug Solder Cup Type Connector Easy Type With Straight Cable Exit Matel Cover
-
Centronic Champ 2.16mm Pitch Ribbon Receptacle IDC 36 Pin Connector With Spring Sheet
Product Details
| Place of Origin | Guangdong, China | Brand Name | FUYCONN | |
| Model Number | FUY57029-36P | Type | Other, 57 Series Connector | |
| Application | Other, Communication Equipment | Gender | Other, Male, Plug |
Product Description
Specifications
Item No. : FUY57029-36P1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Male
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50,64 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C

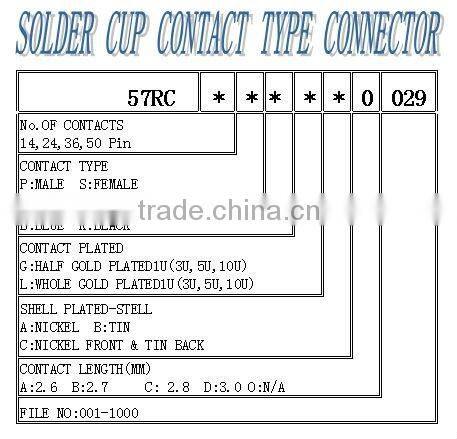

3) Order Information
Remark : 1. This is general information for each of order.
2. Plz reference to filling out this form before inquiry.
3. We will feedback the latest information to you on time.
4. We are look forwar to long term business cooperation with you.
4)Solder Cup Type Connector
5) Technical Parameters
