Home > Products > 2.16mm Pitch Champ Solder Pin Connector > 2.16mm Champ Female Socket Header Solder Type Connector With Hex Head Nuts
2.16mm Champ Female Socket Header Solder Type Connector With Hex Head Nuts
- Shenzhen / Guangzhou
- T/T Credit Card PayPal
You May Like
-
Centronic Solder Cup Pin Socket Champ Female Connector for Ribbon Cable
-
2.16mm Pitch Champ Solder Cup Contacts Receptacle Header Connector Certified UL
-
90 Degree Plug 25 Pairs 50 Pin Champ DDK Male Connector With Solder Cup
-
DDK 2.16mm Pitch Male Plug 25 Pair Champ Header 90 Degree Plastic Cover Brass Solder Cup Pin PBT Insulator Connector
-
Centronics Male Plug 2.16mm Champ Solder Pin Header DDK Ribbon Connector With Hex Head Nuts
-
DDK Ribbon Champ Solder Male Plug Header Connector 2.16mm Pitch Solder Cup Contact Hex Head Nuts
Product Details
| Brand Name | FUYCONN | Model Number | FUY57025 | |
| Place of Origin | Guangdong, China |
Product Description
Specifications
Item No.: FUY570251,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Female
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C

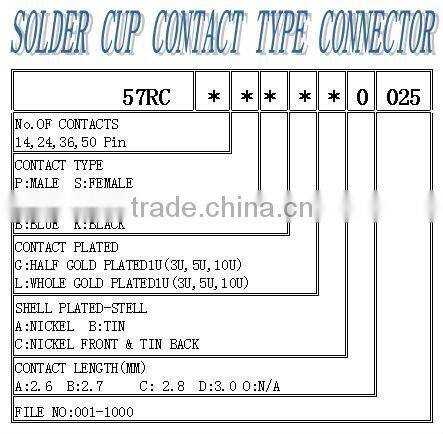

3) Order Information
Remark : 1. This is general information for each of order.
2. Plz reference to filling out this form before inquiry.
3. We will feedback the latest information to you on time.
4. We are look forwar to long term business cooperation with you.
4)Solder Cup Type Connector

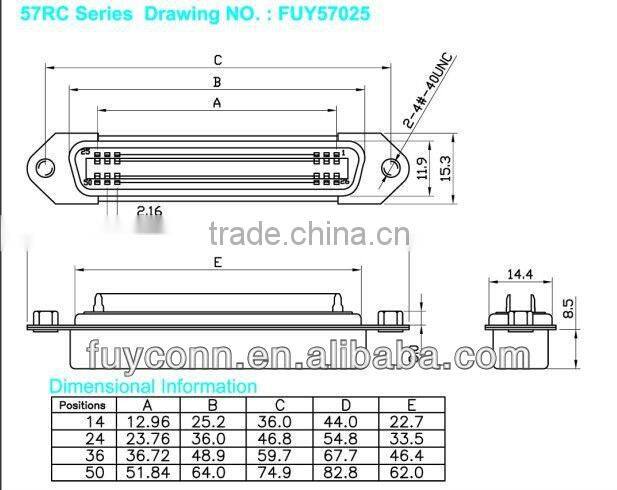

5) Technical Parameters
Contact Us
- Dongguan Fuyconn Electronics Co., Ltd.
- Contact nameJunhui Song Chat Now
- Phone86-769-83690889
- AddressNo.108 Hengdong Road, Fengda Industry District,DongKeng Town,DongGuan City,GuangDong Province,CHINA, Dongguan, Guangdong
