Home > Products > 2.16mm Pitch Champ Solder Pin Connector > Centronic TYCO AMP male Plug type Solder 50 pin 25 pair header connector with side cable entry plastic cover

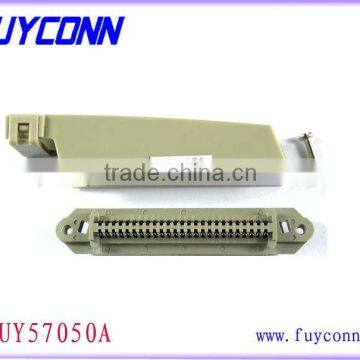

Centronic TYCO AMP male Plug type Solder 50 pin 25 pair header connector with side cable entry plastic cover
USD $1.5 - $3
/ Piece
1000 Pieces(Min.Order)
- 300000 Piece / Pieces per Month
- Guangzhou/ Shenzhen
- T/T Credit Card
You May Like
-
2.16mm pitch Champ Easy and Soften Insulator Matel Cover Solder Pin Connector Male Plug Type
-
24 Pin Solder Contact Centronic Champ Connector Male Plug Type with 180 degree cable outlet Matel Cover
-
Centronics 24 Pin Male Plug Connector PCB Mounting Straight with Board Lock
-
PCB Straight Female Centornics Connector 24 Pin
-
2.16mm DDK 24 pin Female Centronic Connector PCB Straight DIP Receptacle
-
Centronic 24 Pin PCB Straight Connector Male Plug with Spring Latches
Product Details
| Place of Origin | Guangdong, China | Brand Name | FUYCOONN | |
| Model Number | FUY57050A | Type | Other, Centronic Solder Connector | |
| Application | Other, Computer Peripherals | Gender | Male |
Product Description
Specifications
Item No.: FUY57050A1,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Male
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50,64 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (1u", 3u" 5u", 10u", 15u", 30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C
3) Technical Parameters
