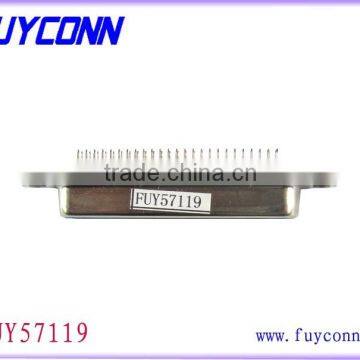

PCB Straight Female Centornics Connector 24 Pin
- Shenzhen / Guangzhou
 - T/T Credit Card

You May Like
-


2.16mm DDK 24 Pin Female Centronic Connector PCB Straight DIP Receptacle
 -


Centronic 24 Pin PCB Straight Connector Male Plug With Spring Latches
 -


24 Pin Male Right Angle PCB Centronics DDK Connector Right Angle
 -


Centronic 24 Pin DDK Female PCB Connector Right Angle Type
 -


24 Pin Centronic DDK Connector Right Angle PCB Male Plug Type Reversed Direction
 -


Right Angle PCB Mounting DDK 24 Pin Male Centronic Connector Solder DIP Plug Type

Product Details
| Place of Origin | Guangdong, China | Brand Name | FUYCONN | |
| Model Number | FUY57119-24P |
Product Description

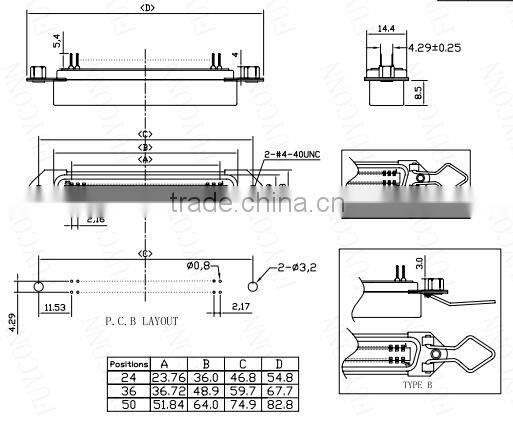

Specifications
Product features
Product Type: Connector
Connector Model: FUY57119
Product Line:CENTRONIC/Micro-Ribbon Connectors
Connector Style: Female
PCB Mount Style: Straight
Orientation:Standard
Mechanical Attachment
Panel Attachment Style:Pan Holes Rivet Insert
Core Material:Thermoplastic
UL Flammability Rating: UL 94-VO
Terminal Related Features
Certerline :2.16mm(0.85 in)
Number of Position:14, 24,36,50,64 pins
PCB Mount Retention Type: Straight
Contact Plating: Gold (A:5u" ,B10u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style:Socket
Housing Material: Thermoplastic-GF
Special Function
A:90°C DIP pan holes (4.2mm) type
B:Pan holes,riveting
C:With Striangles Bail Lock
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
Technology Parameters
