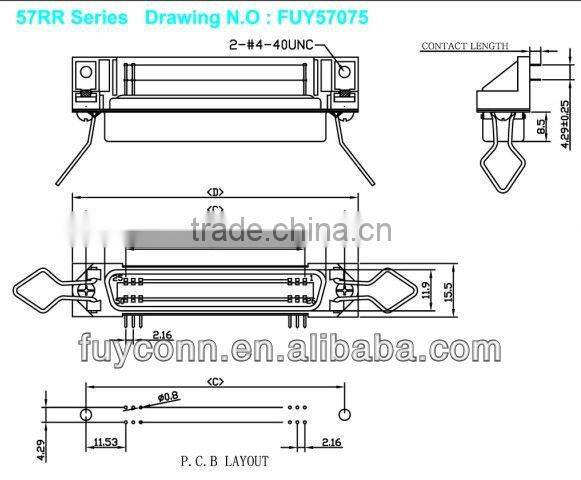

0.085in Pitch PCB Mount 90 Degree Receptacle Connector Female 24pin Socket Header With Board Lock
- Guangzhou / Shenzhen
- T/T Credit Card
You May Like
-
DDK DIP Male Centronic 24 Way Connector Right Angle PCB Mount Plug Type
-
24P Champ Centronic Male Plug Socket Connector PCB Mounting 90 Degree
-
Centronic 24 Pin Male Plug Champ Connector DDK DIP Right Angle PCB Header
-
0.085in Pitch Centronic Connector 24 Pin Right Angle PCB Mount Male Plug Header
-
Champ PCB Mounting Amphenol Right Angle Solder DIP 24 Way Connector 2.16mm Pitch Female Socket
-
DDK DIP Female Receptacle Type PCB Mount Right Angle Amphenol Connector 24 Pin 2.16mm Pitch
Product Details
| Brand Name | FUYCONN | Model Number | FUY57075-24P | |
| Place of Origin | Guangdong, China |
Product Description
Specifications
Product features
Product Type: Connector
Connector Modul: FUY57075
Product Line:CENTRONIC
Connector Style: Female
Orientation:Standard Orientation
Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
PCB Mount Style: Right Angle
Mechanical Attachment
Panel Attachment Style: Screw Lock
Core Material:Thermoplastic
UL Flammability Rating: UL 94-VO
Terminal Related Features
Certerline :2.16mm(0.85 in)
Number of Position: 14,24,36,50,64 pins
PCB Mount Retention Type: Right Angle
Contact Plating: Gold (A:5u" ,B10u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style: Socket
Housing Material: Thermoplastic-GF
Special Function
A:90°C DIP Round Head screw(4*7) type
B:With Bail Lock
C:"L" Shape (Both #4-40 UNC Thread)
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Telecom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |

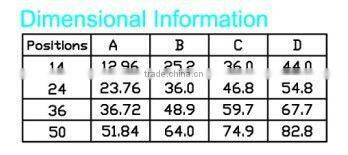

Technology Parameters
