24 Way Centronic Connector PCB DIP Straight DDK Ribbon Connector
US$ 0.3 - 2
/ Piece
1000 Pieces(Min. Order)
- Shenzhen / Guangzhou
- T/T Credit Card PayPal
You May Like
-
24 Pin 2.16mm Pitch PCB Straight DDK DIP Female Receptacle Connector With Spring Latches
-
2.16mm Champ DDK Ribbon Male Plug 24 Pin PCB Straight DIP Connector
-
2.16mm Pitch 24Pin DDK Ribbon Header Connector Receptacle Female Solder Pin Socket With Spring Latches
-
24P Female 2.16mm Pitch DDK Ribbon Champ Receptacle Header Solder Cup Contacts Socket Connector
-
2.16mm Champ 24 Pin DDK Connector Socket Female Header Solder Type With 180 Degree Cable Outlet Matel Cover
-
2.16mm Receptacle Solder Type Female Socket Centronic Connector 24 Pin
Product Details
| Brand Name | FUYCONN | Model Number | FUY57019-24P | |
| Place of Origin | Guangdong, China |
Product Description
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Female
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50,64 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C
3) Order Information
4)Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |

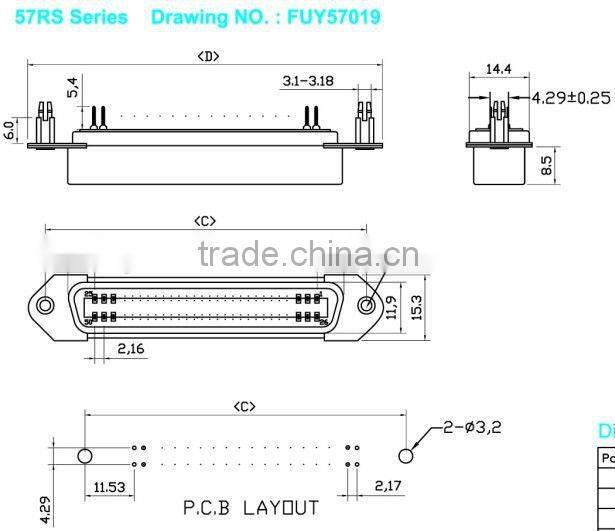

5)Technology Parameters
