Home > Products > 24 Pin Connector > DDK Ribbon 24P Solder Male Plug Brass Contact Centronic Connector with Solder cup

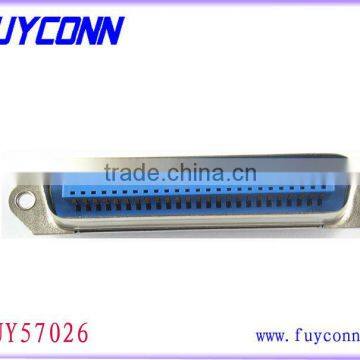

DDK Ribbon 24P Solder Male Plug Brass Contact Centronic Connector with Solder cup
USD $0.3 - $2
/ Piece
1000 Pieces(Min.Order)
- 300000 Piece / Pieces per Month
- Guangzhou / Shenzhen
- T/T Credit Card
You May Like
-
Solder Type Male 24Pin Brass Contact Header Connector Certificated UL
-
57E series 24 Pin straight plug Connector with metal hood which shielded the interface for EMI protection
-
Centronic Champ 2.16mm Pitch Ribbon Female IDC 24 Pin Connector with Spring Sheet
-
36 Pin Centronics Connector Male PCB Right Angle
-
90 Degree PCB DIP Centronics Connector 36 Pin Male MD Shell
-
57CN 36 Pin DDK PCB Mounting Right Angle DIP Type Centronic connector Female Receptacle Type
Product Details
| Place of Origin | Guangdong, China | Brand Name | FUYCOONN | |
| Model Number | FUY57026-24P | Type | Other, 57 Series Ribbon Connector | |
| Application | Other, Computer Peripherals | Gender | Male |
Product Description
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Female
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold Plating (1U", 3U", 5U" ,10U", 15U", 30U") )
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C
3) Technical Parameters
