Home > Products > 24 Pin Connector > 24 Pin Centronic Connector Solder DIP Receptacle Female PCB Right Angle Type
24 Pin Centronic Connector Solder DIP Receptacle Female PCB Right Angle Type
- Shenzhen
- T/T Credit Card
You May Like
-
0.085in Pitch Right Angle PCB Mounting DDK 24P Solder DIP Receptacle Type Connector Female
-
0.085in Pitch DDK DIP Right Angle PCB Header Connector 24 Pin Female Receptacle
-
0.085in Pitch PCB Mount 90 Degree Receptacle Connector Female 24pin Socket Header With Board Lock
-
DDK DIP Male Centronic 24 Way Connector Right Angle PCB Mount Plug Type
-
24P Champ Centronic Male Plug Socket Connector PCB Mounting 90 Degree
-
Centronic 24 Pin Male Plug Champ Connector DDK DIP Right Angle PCB Header
Product Details
| Brand Name | FUYCONN | Model Number | FUY57059-24P | |
| Place of Origin | Guangdong, China |
Product Description

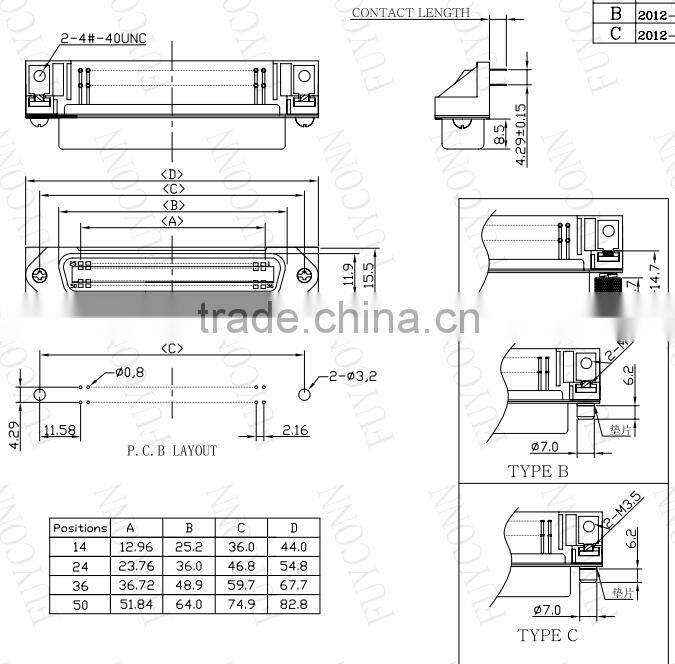

Specifications
Product features
Product Type: Connector
Product Line:CENTRONIC/CHAMP
Product Model: FUY57058
Connector Style: Female
Orientation:Standard Orientation
Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
PCB Mount Style: Right Angle
Mechanical Attachment
Panel Attachment Style: Square Rivet Insert
Insulator Material:Thermoplastic
Terminal Related Features
Certerline :2.16mm(0.85 in)
Number of Position: 14,24,36,50 pins
PCB Mount Retention Type: Right Angel
Contact Plating: Gold (A:5u" ,B15u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style: Receptacle
Housing Material: Thermoplastic
UL Flammability Rating: UL 94-V0
Special Function
A:90°C DIP Square Holes ,Round Head (4*7)
B:Screw Lock
C:3.9mm"Z" Fork Board Lock (Both #4-40 UNC Thread)
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Telecom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
Technology Parameters
