Home > Products > 2.16mm Pitch Champ Solder Pin Connector > 2.16mm Pitch Champ DDK Ribbon Solder Cup Contact Male Plug Type Header Connector

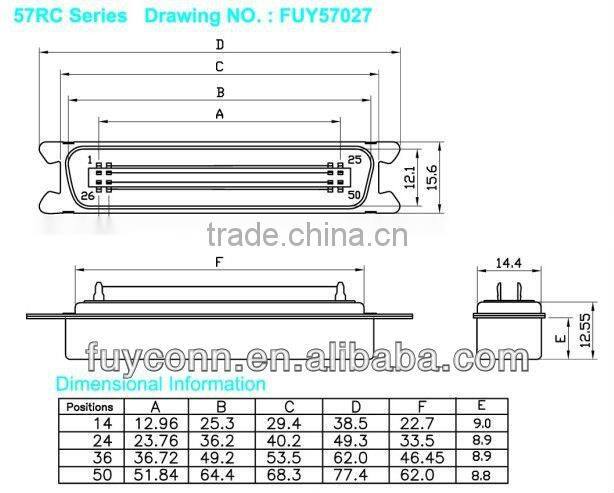

2.16mm Pitch Champ DDK Ribbon Solder Cup Contact Male Plug Type Header Connector
US$ 0.8 - 1.5
/ Piece
1000 Pieces(Min. Order)
- Shengzhen/ Guangzhou
- T/T Credit Card
You May Like
-
2.16mm Pitch Champ Solder Cup Brass Contacts Male Plug Easy Type Header Connector for Ribbon Cable
-
90 Degree Side Cable Entry 2.16mm Pitch Champ 25 Pair Solder DDK Header Connector Male Plug Type
-
57 Series DDK Ribbon Connector Solder Brass Contact Pin Male Plug Header 2.16mm Pitch
-
All Plastic TYCO 90 Degree Receptacle Solder Type Champ 50 Pin Socket Connector 2.16mm Pitch
-
TYCO AMP Plug Male 2.16mm Pitch Champ Solder Type 50 Pin Header Connector With 180 Degree Cover
-
Centronic TYCO AMP Male Plug Type Solder 50 Pin 25 Pair Header Connector With Side Cable Entry Plastic Cover
Product Details
| Brand Name | FUYCONN | Model Number | FUY57027 | |
| Place of Origin | Guangdong, China | Use | Other, Computer |
Product Description
Specifications
Item No. : FUY570271,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Material & finish
| CONNECTOR TYPE | Female of Easy type |
| NO. OF CONTACT | 14,24,36,50,64 pin |
| CONTACT TYPE | Plug |
| INSULATOR COLOR | Bule |
| PLATING | Phosphor bronze and Gold plated |
| GOLD THINKNESS | 5U",15U",30U" |
| SHELL | Steel,Nickel plated steel |
| INSULATOR | PBO&Glass-fibre reinforced(UL-94-V1) |
| COM MATERIAL | Thermoplastic |
| CURRENT RATING | 5Amp |
| DIELECTRIC STRENGTH | 1000V per minute |
| INSULATOR RESISTANCE | 1000MΩMin.(at 500v DC) |
| OPERATION TEMPERATURE | -55°C to +105°C |
| SPECIAL FUNCTION | Without |
Terminal Related Features:
Solder Tail Contact Plating: Tin
Application
VDSL Teleccommunications Industry
Computer termial ,Test Equipment
Computer Peripherals,Telemetering etc3.
