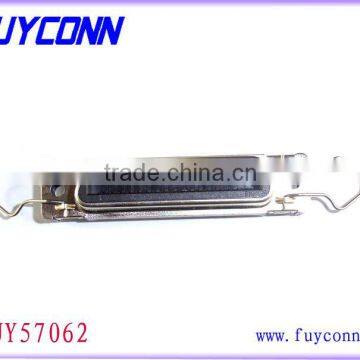

2.16mm Champ DDK Solder DIP Termination Connector PCB Mounting Straight Type Female Receptacle with Spring Latches
USD $1 - $2
/ Piece
1000 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- Guangzhou / Shenzhen
- T/T Credit Card
You May Like
-
Straight cable entry TYCO 50P 25 pair Champ Female Solder Type Connector Receptacle Header Socket
-
Ribbon Receptacle Female Header Socket 2.16mm Solder pin DDK connector with Spring Latches
-
2.16mm pitch Champ Female Type Solder pin Receptacle Header Socket Connector with Triangle Plate and Spring Latches
-
DDK Female header 2.16mm Pitch Solder pin Receptacle Socket connector with 180 Degree cable entry Matel Cover
-
Centronic Connector Solder Female Type 2.16mm Champ Receptacle Socket with Side Cable Entry Matel Cover Certified UL
-
2.16mm Champ Female socket Header solder type connector with Hex Head Nuts
Product Details
| Place of Origin | Guangdong, China | Brand Name | FUYCONN | |
| Model Number | FUY57062 | Type | Other, Champ PCB Connector, Straight Angle PCB Connector | |
| Application | Other, Dot Matrix Printer | Gender | Other, Female, Female |
Product Description
Specifications
Item No. : FUY570621,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
1) Product features
1. Product Type: Connector
2. Product Line:CENTRONIC
3. Connector Style: Female
4. Certerline :2.16mm(0.85 in)
5. Number of Position:14,24, 36,50,64 pin
6. Contact Material: Copper Alloy
7. Contact Plating: Gold (A:5u" ,B:10u",C:15u"A:30u'')
8. Comb Material:Thermoplastic
9. UL Flammability Rating: UL-94-V0
10. Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
11. Orientation:Standard
12. Special Function:(Pan Holes)
A: Screw Lock B:Rivet Insert
C: 4.8mm Hex Screw Lock
D: IEEE488 Hex Screw Lock
2) Electrical Specifications
1. Current Rating: 5Amp
2. Voltage rating: DC 1000v per minute
3. Insulator Resistance: 1000Mn MIN.(at 500V DC)
4. Operation Temperature: -55°C to +105°C
3) Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
4) Technology Parameters
