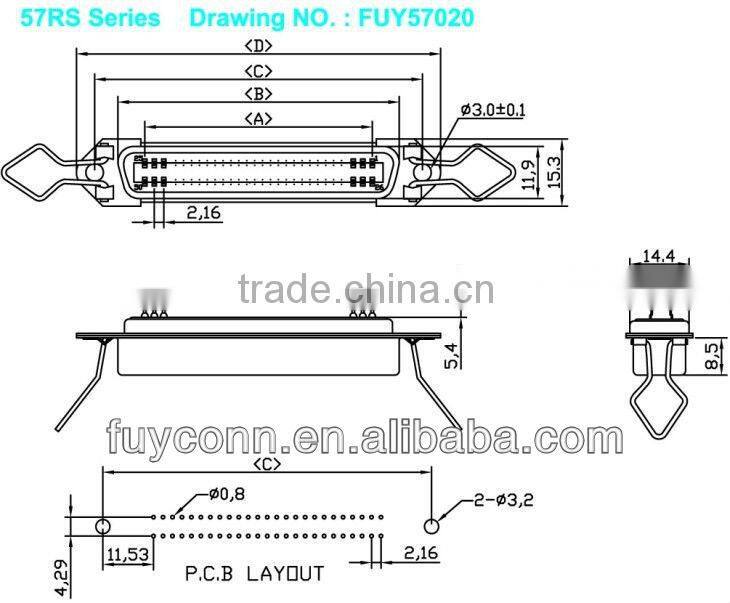

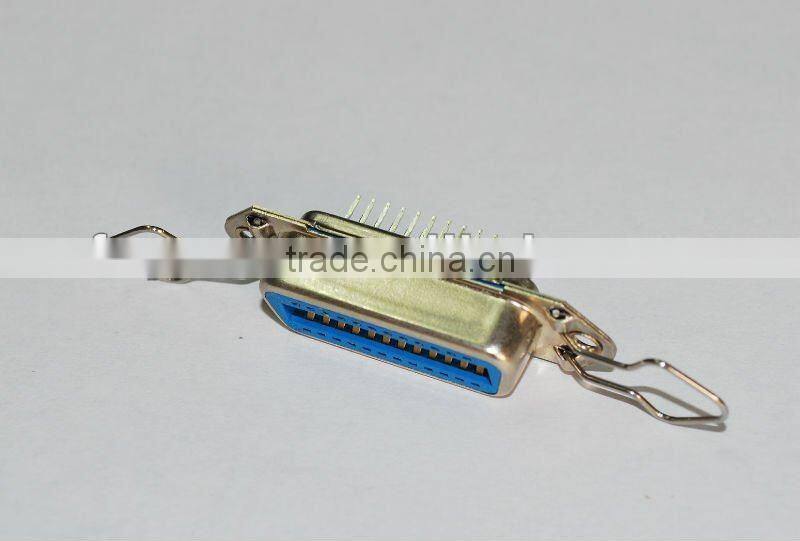

2.16mm pitch Champ Receptacle with Spring latches PCB Straight DDK DIP Female Type Ribbon Cable Connector
USD $1 - $2
/ Piece
1000 Pieces(Min.Order)
- 1000000 Piece / Pieces per Month
- Guangzhou / Shenzhen
- T/T Credit Card
You May Like
-
2.16mm Pitch DDK PCB Straight Solder DIP Termination Male Plug Cantilever Contact Connector
-
2.16mm Champ DDK Solder DIP Termination Connector PCB Mounting Straight Type Female Receptacle with Spring Latches
-
Straight cable entry TYCO 50P 25 pair Champ Female Solder Type Connector Receptacle Header Socket
-
Ribbon Receptacle Female Header Socket 2.16mm Solder pin DDK connector with Spring Latches
-
2.16mm pitch Champ Female Type Solder pin Receptacle Header Socket Connector with Triangle Plate and Spring Latches
-
DDK Female header 2.16mm Pitch Solder pin Receptacle Socket connector with 180 Degree cable entry Matel Cover
Product Details
| Place of Origin | Guangdong, China | Brand Name | FUYCONN | |
| Model Number | FUY57020 | Type | Other, Extension Socket, Straight PCB Connector | |
| Grounding | Non-Grounding | Rated Voltage | 1000V Per minute | |
| Rated Current | 5Amp | Application | Industrial |
Product Description
Specifications
Item No.: FUY570201,ROHS compliant, UL-approved
2,High quality, Competitive price
3,Quick delivery time
4,Free sample
Specifications
Product features:
Product Type: Connector
Product Line:CENTRONIC
Connector Style: Female
Shell: Stainless steel,Zinc plated,Tin ploted or Nickel plated steel
PCB Mount Style: Right Angle
Orientation:Standard
Terminal Related Features
Certerline :2.16mm(0.85 in)
Number of Position: 14,24,36,50 pin
PCB Mount Retention Type: Right Angle
Contact Plating: Gold (A:5u" ,B10u",C:15u",D:30u")
Contact Material: Copper Alloy
Housing Features
Connector Style: Receptacle
Housing Material: Steel
UL Flammability Rating: UL 94V-O
Special Function
A:90°C DIP pan holes type
B:Pan holes,riveting
Finish
Electrical Specifications:
Current Rating: 5Amp
Voltage rating: DC 1000v per minute
Insulator Resistance: 1000Mn MIN.(at 500V DC)
Operation Temperature: -55°C to +105°C
Application
| 1, VDSL Teleccom Equipment | |
| 2, Computer Peripherals | |
| 3, Communication Equipment | |
| 4, PCB Board | |
| 5, Cable to Panel | |
| 6, Cable to cable | |
| 7,Computer terminal | |
| 8,Telemetering | |
| 9,Test Equipment | |
| 10, Printer |
Technology Parameters
