Oil Resistance ARC Welding Cable 50mm2 Welder Cable
- TIANJIN QINGDAO SHANGHAI
- T/T Credit Card
You May Like
-
2015 hot sale High quality!! single core rubber cable welding cables 70mm2
-
Rubber Flexible Cable
-
H05RR-F H07RN Rubber flexible cable, power cable 2015 hot sale
-
H07RN-F cable YC/YZ/YCW Flexible Rubber Cable
-
H05RR-F H05RN-F H07RN-F Flexible Rubber Cable,Rubber Welding Cable,Rubber Cable
-
MCP, MYCPT, MYQP, Flexible Rubber Mining Cable 2015 hot sale factory price
Product Details
Place of Origin | Hebei, China | Brand Name | YITENG | |
Model Number | 25mm2,35mm2,50mm2,70mm2 | Insulation Material | PVC | |
Type | Low Voltage | Application | Industrial | |
Conductor Material | Copper | Jacket | Rubber |
Product Description

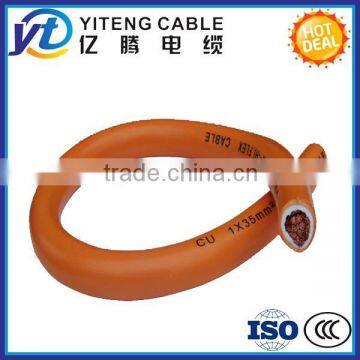

Oil Resistance ARC Welding Cable 50mm2 Welder Cable
Product Description
Application:
For the transmission of high currents from the electric welding machine to the welding tool. Suitable for flexible use under rough conditions, on assembly lines and conveyor systems, in machine tool and motor car manufacturing, ship building, for manually and automatically operated line and spot welding machines.
Standards: BS638 Part 4* BS EN 60332-1-2
Construction:
Conductor: Class 6 extra flexible plain copper conductors to BS EN 60228: 2005 (previously BS6360)(Class 5 flexible plain copper conductors for 120mm² And above)
Separator: PETP (Polyethylene Terephthalate)
Insulation: EPR (Ethylene Propylene Rubber) to BS7655
Sheath: HOFR (Heat and Oil Resistant and Flame Retardant)to BS7655Sheath
Colour: Orange
Voltage Rating: 100V (450V for non-welding applications if suitably protected from mechanical damage)Temperature Rating: -20° C to +85° C
Minimum Bending Radius: 6 x overall diameter
Note: * Sizes up to and including 185mm² Confirm to BS 638 Part 4. Sizes above 185mm² Are generally to BS638 Part 4.
RoHS Compliant 0361TQ
Black Welding Cable to BS638
Black Welding Cable to BS638 |
|
Nominal Cross Sectional Area mm² | Nominal Overall Diameter mm |
1 x 16 | 9.7 |
1 x 25 | 11.2 |
1 x 35 | 12.4 |
1 x 50 | 14.3 |
1 x 70 | 16.3 |
1 x 95 | 18.6 |
1 x 120 | 20.3 |
1 x 150 | 22.6 |
1 x 185 | 24.7 |
1 x 240 | 27.8 |
