Product Details
| Place of Origin | Hebei, China | Brand Name | YITENG | |
| Model Number | 0.6/1kv 8.7/15KV 26/35kV | Insulation Material | Rubber | |
| Type | Low Voltage | Application | Industrial | |
| Conductor Material | Copper | Jacket | Rubber |
Product Description

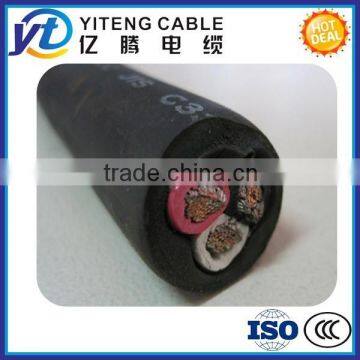

Electric wire&cable Rubber cable, flexible cable,power cord Flexible Rubber Mining Cable
Mining cable ,rubber insulated, Flexible rubber insulated mine cable
The standards
The power cable is mainly complying with IEC 60502,IEC60840 standard, also can be produced according to OEM requirements and other standards, such as BS, DIN, ASTM, VDE, NFC standards, and so on.
low voltage power cable
Number of the cores: Single core,2cores,3cores,4cores,5cores,3+1cores,3+2cors,4+1cores.
Conductor: copper or aluminium
Insulation:xlpe/pvc
Steel tape armored or steel wire armored or unarmored
PVC or PE outer sheath power cable.
Medium voltage power cable:
3.6/6kV,6/6kV,6/10kV,8.7/10kV,8.7/15kV,12/20kV,18/20kV,18/30kV,21/35kV,26/35kV.
Conductor long-time operating temperature is 90 degrees.
In short circuit, conductor highest temperature should be not more than 250 degrees.
Number of the cores:Single core and 3 cores
Conductor:copper or aluminium
Insulation:xlpe
Copper tape or copper wire screen
Unarmoured and armoured(Steel tape and steel wire armored)
PVC or PE sheath power cable
Model and Data:
Reference Standard: VDE 0282 / GB7917 | Rated Voltage: 450/750V | Rated Temperature: -20℃ to 60℃ | ||||
Conductor: Copper or Tinned Copper | Insulation: EPDM | Sheath: CPE | ||||
No. of Cores x Normal Cross Sectional Area of Conductor (mm2 ) | Normal Diameter of Strand (mm) | Normal Thickness of Insulation (mm) | Normal Thickness of Jacket (mm) | Over Diameter of Cable (mm) | Max Conductor Resistance at 20℃ ( ≤Ω/km ) | |
2x1.0 | 0.20 | 0.8 | 1.3 | 8.3±0.5 | 17 | |
2x1.5 | 0.253 | 0.8 | 1.5 | 9.3±0.5 | 21 | |
2x2.5 | 0.253 | 0.9 | 1.7 | 11.2±0.5 | 30 | |
2x4 | 0.30 | 1.0 | 1.8 | 12.8±0.5 | 39 | |
2x6 | 0.30 | 1.0 | 12.0 | 14.4±0.5 | 51 | |
3G1.0 | 0.20 | 0.8 | 01.4 | 9.0±0.5 | 12 | |
3G1.5 | 0.253 | 0.8 | 1.6 | 10.1±0.5 | 18 | |
3G2.5 | 0.253 | 0.9 | 1.8 | 12.1±0.5 | 26 | |
3G4 | 0.30 | 1.0 | 1.9 | 13.9±0.5 | 34 | |
3G6 | 0.30 | 1.0 | 2.1 | 15.4±0.5 | 43 | |
4G1.0 | 0.20 | 0.8 | 1.5 | 9.9±0.5 | 14 | |
4G1.5 | 0.253 | 0.8 | 1.7 | 11.1±0.5 | 18 | |
4G2.5 | 0.253 | 0.9 | 1.9 | 13.3±0.5 | 27 | |
4G4 | 0.30 | 1.0 | 2.0 | 15.2±0.5 | 34 | |
4G6 | 0.30 | 1.0 | 2.3 | 17.2±0.5 | 44 | |
5G1.0 | 0.20 | 0.8 | 1.6 | 11.0±0.5 | 14 | |
5G1.5 | 0.253 | 0.8 | 1.8 | 12.2±0.5 | 18 | |
5G2.5 | 0.253 | 0.9 | 2.0 | 14.6±0.5 | 27 | |
5G4 | 0.30 | 1.0 | 2.2 | 16.9±0.5 | 34 | |
5G6 | 0.30 | 1.0 | 2.5 | 19.1±0.5 | 44 | |
|
|
|
|
|
|
|
Type and Data
HAR Code | IEC | Description | Voltage Design | Cores |
H05RR-F | 60245 IEC 53(YZ)/YZ | Oridinary rubber sheathed cord | 300/500V | 2~6 |
H05RN-F | 60245 IEC 57(YZW)/YZW | Oridinary polychloroprene or other equivalent synthetic elastomer sheathed cord | 300/500V | 2~6 |
H07RN-F | 60245 IEC 66(YCW)/YC | Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable | 450/750V | 1~5, 3+1/3+2/4+1 |
H01N2-D | 60245 IEC 81(YH) | Rubber sheathed arc-wel ding electrode cable | 450/750V | 1 |
60245 IEC 82(YHF) | polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable | 450/750V | 1 |
Yiteng Cable Technology Hebei Co., Ltd
Established Year: 2014
Registered capital of RMB:100,000,000
Factory Area:36,000m2
Manufacturing Capacity per year: 250000km
Number of Employees: 250
Main products:
Bare conductors(AAC,ACSR,AAAC,ACAR,Aluminum Clad Steel Conductor);
Aerial Bundled Cable (ABC Cable);
Power cable,Electrical wire cable,
Armored cables,
Control cables,
Rubber insulated cables, PVC insulated wires and cables,
Battery cables,Instrument cables, Coaxial cables,Flat cables,
Welding cables,House wire,Special Cables etc.
FAQ:
1.Q: Is your company a manufacturer or a trade company?
A: We are cable manufacturer.
2. Q: Where is your factory located? How can I visit there?
A:Our factory is located in Ningjin City, Hebei,Province, China. You can fly to Shijiazhuang airport directly. All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: What is your sample policy?
A: Some of our samples are available for free, while others are available at a cost, which will be deducted from the purchase order.
4. Q: I am very interested in your product, can you sent me your full catalog and pricing list?
A: We can select some popular products for you immediately. Please let us know your requirements so that we can send out the quotation to you.
