Home > Products > Shielded Cable > XLPE Insulation and Copper Conductor Shielded / Screened Control Cable

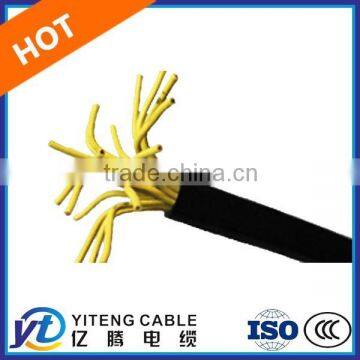

XLPE Insulation and Copper Conductor Shielded / Screened Control Cable

FOB Price

USD $0.1 - $30 / Kilometer

1 Kilometer(Min.Order)

Port Tianjin Qingdao Shanghai as required
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hebei, China	Brand Name	YITENG
Model Number	KYJV, KYJVR, KYJVP, KYJVP2, etc	Application	Underground
Conductor Material	Copper	Jacket	PVC
Insulation Material	XLPE

Product Description

XLPE Insulation and Copper Conductor Shielded / Screened Control Cable

--Yiteng Cable Technology Hebei Co., Ltd.

Product Description

Product Description

Copper Conductor Shielded|Screened Control Cable with XLPE Insulation and STA SWA Armour or without Armour

1. Application for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable

The XLPE Insulated Control cables are designed for connection wires of power distribution equip-ments for controlling, monitoring, protecting circuits with A .C. rated voltage 450/750V and below.

2. Manufacturing Standards for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable

ASTM ICEA BS DIN IEC GB AS/NZS etc.

3. Operating Features for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable

a). Rated voltage Uo/U is 450/750V.
b). Allowed continuous working temperature of conductor is 90℃
c). Installation temperature of cables should be no less than 0℃ . Bending radius should be not less than 12 times O.D. of cable.

d). Max. Temperature of conductor (Max. 5sec. duration) should be not more than 250℃ .

4. Main Technical Requirements for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable

a). Conductor
Conductor construction and D.C.Resistance should be in accordance with table 3
b). Insulation
Insulated core can be identified with different colors and different numbers. The nominal thickness of insulation is 0.7mm. The thinnest point of insulation should be not less than.
90%-0.1mm of nominal value. The Min. resistance of insulation should be in accordance
c).Voltage

Finished cable should withstand voltage withstanding test with AC 50Hz,3000V,5 minutes.
d). Sheath thickness, approximate overall diameter,approximate weight of finshed cable.

5. Construction for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable

6. Picture Showcase for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable

7. Types, Description and Main Application for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable

Control Cable Type	Control Cable Description	Main Application for Control Cable
KYJV	Copper conductor XLPE insulated and PVC sheathed control cable	This kind of XLPE control cable is used for laying indoors, in trenches, in ducts and directly in ground
KYJVR	Copper conductor XLPE insulated and PVC sheathed flexible control cable
KYJVP	Copper conductor XLPE insulated and PVC sheathed control cable with copper tape lapping screen	This kind of control cable is used for laying indoors, in trenches, in ducts directly in ground and other places that nterference-resistance is requested.
KYJVP2	Copper conductor XLPE insulated and PVC sheathed flexible control cable with braiding screen
KYJVRP	Copper conductor XLPE insulated and PVC sheathed control cable with copper tape longitudinal screen
KYJVRP2	Copper conductor XLPE insulated and PVC sheathed flexible control cable with copper tape lapping screen
KYJVPT	Copper conductor XLPE insulated and PVC sheathed control cable with copper tape longitudinal screen
KYJVPL	Copper conductor XLPE insulated and PVC sheathed control cable with aluminum tape longitudinal lapping screen
KYJV22	Copper conductor XLPE insulated and PVC sheathed control cable with steel tape armour	This kind of control cable is used for flxed installation, laying indoors, in trenches and ducts, directly in ground where heavier mechanical force withstood
KYJVP2-22(A)	Copper conductor XLPE insulated and PVC sheathed steel tape armored control cable with copper tape lapping screen	This kind of control cable is usde for fixed installation, laying indoors,in trenches and ducts,directly in ground where heavier mechanical force and interference resistance withstood
KYJVPT-22(A)	Copper conductor XLPE insulated and PVC sheathed steel tape armored control cable with copper tape longitudinal screen
KYJVPL-22(A)	Copper conductor XLPE insulated and PVC sheathed steel tape armored control cable with aluminum tape longitudinal screen

Note:For flame resistance XLPE insulated and PVC sheathed cable ,add ZR in the front of above types. e.g. ZR-KYJV.
8. Specification for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable

Control Cable Type	Control Cable Rated voltage V	Nom.area of conductor (mm2) of Control Cable
		0.75	1.0	1.5	2.5	4	6	10
		No .of cores
KYJV	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
KYJVR	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
KYJVRP	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
KYJVP	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
KYJVP2	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
KYJVRP	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
KYJVRP2	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
KYJVPT	450/750	2~61	2~61	2~61	4~14	4~14	4~14	4~10
KYJVPL	450/750	7~61	7~61	4~61	4~14	4~14	4~14	4~10
KYJVP2-22(A)	450/750	4~61	4~61	4~61	4~14	4~14	4~14	4~10
KYJVPT-22(A)	450/750	4~61	4~61	4~61	4~14	4~14	4~14	4~10
KYJVPL-22(A)	450/750	4~61	4~61	4~61	4~14	4~14	4~14	4~10

9. Conductor Construction for XLPE Insulation and Copper Conductor Shielded / Screened Control Cable

Nom. Cross Sectional mm2	Construction of conductor		DC Resistance of conductor at 20℃ (Max.) Ω/km		Min lnsulation resistance at 90℃ MΩ·km
Nom. Cross Sectional mm2	Category	No./Nom. Dia of strand mm	Not tinned	Tinned	Min lnsulation resistance at 90℃ MΩ·km
0.75	1	1/0.97	24.5	24.8	1.2
0.75	2	7/0.37	24.5	24.8	1.2
0.75	3	24/0.20	26.0	26.7	1.2
1.0	1	1/1.13	18.1	18.2	1.1
1.0	2	7/0.43	18.1	18.2	1.1
1.0	3	32/0.20	19.5	20.0	1.1
1.5	1	1/1.38	12.1	12.2	0.96
1.5	2	7/0.52	12.1	12.2	0.96
1.5	3	30/0.25	13.3	13.7	0.96
2.5	1	1/1.78	7.41	7.56	0.78
2.5	2	7/0.68	7.41	7.56	0.78
2.5	3	50/0.25	7.98	8.21	0.78
4	1	1/2.25	4.61	4.70	0.67
4	2	7/0.85	4.61	4.70	0.67
6	1	1/2.76	3.08	3.11	0.56
6	2	7/1.04	3.08	3.11	0.56
10	2	7/1.35	1.83	1.84	0.52
