Shielded Twist Pairs DJYVPR computer cable
- TIANJIN SHANGHAI QINGDAO
- T/T Credit Card PayPal
You May Like
-
UL2464 Shielded Electrical power control Cable
-
UL2464 Shielded Electrical control Cables
-
Multi Core PVC Insulation PVC Sheathed Flexible Cable/Rvv Cable
-
Rubber |PVC Insulated And Sheathed Control Cable
-
PVC insulated PVC sheathed Braid screened Control Cable
-
450/750V Copper core PVC insulated PVC sheathed control cable
Product Details
| Place of Origin | Hebei, China | Brand Name | YITENG | |
| Model Number | DJYPVPR, DJYVP, DJYVPR | Insulation Material | PE | |
| Type | Low Voltage | Application | Other, Industrial, Computer, Mobile Phone, Network | |
| Conductor Material | Copper | Jacket | PVC |
Product Description

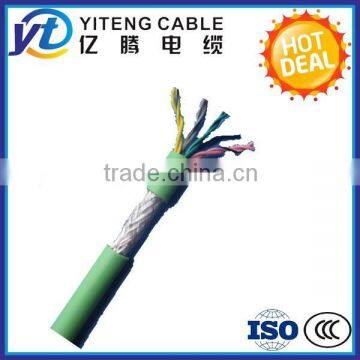

Shielded Twist Pairs DJYVPR computer cable
Product Description
PVC control power cables have the advantages of not only good electrical properties And chemical stability, but also simple construction and convenient to use. It applies to electrical power transmission and distribution lines with A. C.
Rated Voltage U0/U up to and including 450/750V.
1 UO/U: 450/750V
2 Standard applied: IEC60227, BS6500, VDE0250, GB/T9330
3 Max working temperature: 70C
4 Conductor: Annealed bare copper solid or strands
5 Insulation: PVC
6 Cores: Twisted Pair 1~16 pairs
7 Cross section areas: 0.750mm2~1.5 mm2
8 Armore: Without armored
9 Color: Red, blue, white for active core, green/yellow for earth core, black for sheath.
10 Certificate: : CCC CE
11 Roll package Wooden drum or as requested
Model and Data
| TYPE | P AIRS | S PEC. | Con. No. | Per Con. Dia φ | Weight /KM | External Dia. mm |
| DJYVP | 1pairs | 0.75*2C | 1 | 0.98 | 58 | 7.1 |
| DJYVP | 2pairs | 0.75*2C | 1 | 0.98 | 103 | 10.3 |
| DJYVP | 3pairs | 0.75*2C | 1 | 0.98 | 131 | 10.9 |
| DJYVP | 4pairs | 0.75*2C | 1 | 0.98 | 162 | 11.9 |
| DJYVP | 5pairs | 0.75*2C | 1 | 0.98 | 194 | 13.1 |
| DJYVP | 6pairs | 0.75*2C | 1 | 0.98 | 226 | 14.3 |
| DJYVP | 7pairs | 0.75*2C | 1 | 0.98 | 249 | 14.3 |
| DJYVP | 8pairs | 0.75*2C | 1 | 0.98 | 282 | 15.5 |
| DJYVP | 9pairs | 0.75*2C | 1 | 0.98 | 319 | 17 |
| DJYVP | 10pairs | 0.75*2C | 1 | 0.98 | 352 | 18.2 |
| DJYVP | 11pairs | 0.75*2C | 1 | 0.98 | 381 | 18.8 |
| DJYVP | 12pairs | 0.75*2C | 1 | 0.98 | 404 | 18.8 |
| DJYVP | 13pairs | 0.75*2C | 1 | 0.98 | 436 | 19.8 |
| DJYVP | 14pairs | 0.75*2C | 1 | 0.98 | 459 | 19.8 |
| DJYVP | 15pairs | 0.75*2C | 1 | 0.98 | 493 | 21 |
| DJYVP | 16pairs | 0.75*2C | 1 | 0.98 | 516 | 21 |
| DJYVP | 1pairs | 1.0*2C | 1 | 1.13 | 66 | 7.4 |
| DJYVP | 2pairs | 1.0*2C | 1 | 1.13 | 119 | 10.9 |
| DJYVP | 3pairs | 1.0*2C | 1 | 1.13 | 153 | 11.5 |
| DJYVP | 4pairs | 1.0*2C | 1 | 1.13 | 189 | 12.6 |
| DJYVP | 5pairs | 1.0*2C | 1 | 1.13 | 228 | 13.8 |
| DJYVP | 6pairs | 1.0*2C | 1 | 1.13 | 266 | 15.1 |
| DJYVP | 7pairs | 1.0*2C | 1 | 1.13 | 295 | 15.1 |
| DJYVP | 8pairs | 1.0*2C | 1 | 1.13 | 334 | 16.4 |
| DJYVP | 9pairs | 1.0*2C | 1 | 1.13 | 378 | 18 |
| DJYVP | 10pairs | 1.0*2C | 1 | 1.13 | 418 | 19.3 |
| DJYVP | 11pairs | 1.0*2C | 1 | 1.13 | 452 | 19.9 |
| DJYVP | 12pairs | 1.0*2C | 1 | 1.13 | 481 | 19.9 |
| DJYVP | 13pairs | 1.0*2C | 1 | 1.13 | 520 | 21 |
| DJYVP | 14pairs | 1.0*2C | 1 | 1.13 | 549 | 21 |
| DJYVP | 15pairs | 1.0*2C | 1 | 1.13 | 589 | 22.2 |
| DJYVP | 16pairs | 1.0*2C | 1 | 1.13 | 618 | 22.2 |
| DJYVP | 1pairs | 1.5*2C | 1 | 1.38 | 85 | 8.3 |
| DJYVP | 2pairs | 1.5*2C | 1 | 1.38 | 157 | 12.5 |
| DJYVP | 3pairs | 1.5*2C | 1 | 1.38 | 204 | 13.3 |
| DJYVP | 4pairs | 1.5*2C | 1 | 1.38 | 256 | 14.6 |
| DJYVP | 5pairs | 1.5*2C | 1 | 1.38 | 310 | 16 |
| DJYVP | 6pairs | 1.5*2C | 1 | 1.38 | 364 | 17.5 |
| DJYVP | 7pairs | 1.5*2C | 1 | 1.38 | 406 | 17.5 |
| DJYVP | 8pairs | 1.5*2C | 1 | 1.38 | 461 | 19 |
| DJYVP | 9pairs | 1.5*2C | 1 | 1.38 | 521 | 21 |
| DJYVP | 10pairs | 1.5*2C | 1 | 1.38 | 577 | 22.5 |
| DJYVP | 11pairs | 1.5*2C | 1 | 1.38 | 627 | 23.3 |
| DJYVP | 12pairs | 1.5*2C | 1 | 1.38 | 668 | 23.3 |
| DJYVP | 13pairs | 1.5*2C | 1 | 1.38 | 723 | 24.6 |
| DJYVP | 14pairs | 1.5*2C | 1 | 1.38 | 765 | 24.6 |
| DJYVP | 15pairs | 1.5*2C | 1 | 1.38 | 822 | 26 |
| DJYVP | 16pairs | 1.5*2C | 1 | 1.38 | 863 | 26 |
