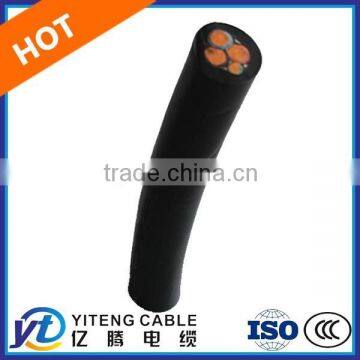

water-resistant, waterproof rubber-jacketed cable, harmonized type

Technical data

• Water resistant
• Temperature range
  flexing -25°C
  fixed installation -40°C
  in water max. +40°C
• Permissible operating temperature
  at conductor +60°C
• Nominal voltage U0/U 450/750 V
  in case of protected and fixed installation
  U0/U 600/1000 V
• Test voltage 2500 V
• Permanent tensile load
  max. 15 N/mm²
• Minimum bending radius
  flexing 6 x cable Ø
  fixed installation 4x cable Ø

Cable structure

• Copper conductor fine wire stranded, bare
• Rubber conductor insulation
• Core identification to
• Core colors
  up to 5 conductors one-colored
  6 and more conductors, black with numbering
  3 and above, with green-yellow ground
  2 conductors without green-yellow ground
• Cores stranded in layers with optimal lay-length
• Special polychoroprene rubber outer jacket
• Outer jacket black

Properties

• Resistant to
  Ozone
  Weather

• Oil resistant
  Test according

• Test of behaviour compared to environmental influences
  Test according to DIN VDE 0482 part 265-2-1/ EN 50265-2-1/ IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)

• The conductor identification of a single conductor jacketed, of an insulated wire is black.
  For application as a protective conductor, the ends are to be identified with green-yellow and the middle conductor with light blue

Application

Specifically designed for use in fresh water up to 10 m water depth and a maximum water temperature of 40 °C for connection of submersible pumps and similar applications. Not suitable for underwater power transmission systems or in waterways or in areas where mechanical damage is possible which represent a potential danger.
CE = The product is conformed with the EC Low-Voltage Directive 2006/95/EC.
