Product Details
| Place of Origin | Hebei, China | Brand Name | Yiteng | |
| Model Number | YH, YHF Welding Cable | Insulation Material | Other, Rubber, Rubber Insulated Cable | |
| Type | Low Voltage | Application | Industrial | |
| Conductor Material | Copper | Jacket | Rubber |
Product Description

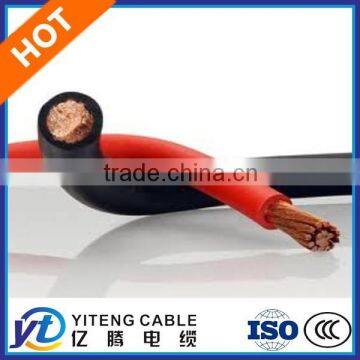

YH, YHF 50mm2 70mm2 pvc welding cable/battery cable
Specification:
1). Single Flexible Copper/ Aluminium Stranded Core
2). Super Flexible, Super Flex Welding Cable, Highly Flexible Welding Cable
3). Standards: IEC60245
YH, YHF 50mm2 70mm2 pvc welding cable/battery cable
( Tin Plated/ Tinned Copper Wire Flexible Welding Cable)
1. Standard: IEC 60245
2. Welding Cable Structure: Stranded Tin Plated/ Tinned Copper Conductor, Rubber Insulation
3. Welding Cable Application: It's used in the automobile industry in shipbuilding, in transport and conveyor system, tool making machinery, welding robots etc.
4. Welding Cable Characteristics:
high elasticity, aging resistance & oil resistance
5. Welding Cable Options:
YH, YHF 50mm2 70mm2 pvc welding cable/battery cable
Conductor Material: Cu, Al, Tinned CU, Tin Plated CU
Insulation Material: Rubber or TPE
Insulation Type: Single or Double insulation
Color: black, white, orange,blue
6. Rubber Welding Cable Type & Specification:
Welding Cable Type and Description | ||||||
Welding Cable Types | Welding Cable Name | Welding Cable Working temperature of core ≤(℃) | ||||
YH | Natural rubber sheath for welding machine cable | 65℃ | ||||
YHF | Horoprene rubber or other syntheitic rubber sheath welding machine cable | 65℃ | ||||
| Yiteng Cable Technology Produces Flexible Rubber Cable for Welding Machine. Welcome Your Inquiry! | ||||||
Welding Cable Specification | ||||||
Welding Cable Cross-section (mm2) | Welding Cable Conductor Wires*Dia. | Welding Cable Insulation Thickness(mm) | Diameter Min. | Diameter Max | Resistance at 20 degree ≤(Ω/km) | Weight Kg/km |
10 | 322/0.20 | 1.8 | 7.5 | 9.7 | 1.91 | 146 |
16 | 513/0.20 | 2.0 | 9.2 | 11.5 | 1.16 | 218.9 |
25 | 798/0.20 | 2.0 | 10.5 | 13.0 | 0.758 | 316.6 |
35 | 1121/0.20 | 2.0 | 11.5 | 14.5 | 0.536 | 426 |
50 | 1596/0.20 | 2.2 | 13.5 | 17.0 | 0.379 | 592.47 |
70 | 2214/0.20 | 2.4 | 15.0 | 19.5 | 0.268 | 790 |
95 | 2997/0.20 | 2.6 | 17.0 | 22.0 | 0.198 | 1066.17 |
120 | 1702/0.30 | 2.8 | 19.0 | 24.0 | 0.161 | 1348.25 |
150 | 2135/0.30 | 3.0 | 21.0 | 27.0 | 0.128 | 1648.5 |
185 | 1443/0.40 | 3.2 | 22.0 | 29.0 | 0.106 | 1983.8 |
With Yiteng Cable,
1. Cables are packed in standard export drums or other ways per customer's requirement;
2. Cables are handled and shipped carefully to ensure perfect package unpon customer's receiving.
