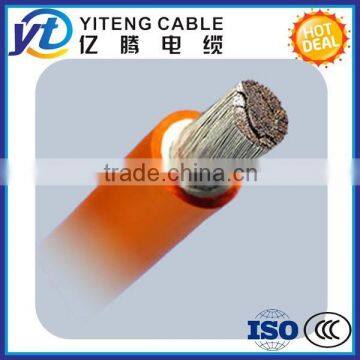

single core cooper conductor welding cable made in China 2015 hot sale

FOB Price

USD $5 - $50 / Meter

500 Meters(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Rubber sheath flexible welding cable electric cable 25mm2 35mm2 50mm2 70mm2 95mm2 120mm2

Product Description

1) Nominal area: 10~185mm2

2) Conductor: class 5 tinned or plain copper wire

3) No. of cores: 1

4) Insulation: rubber compound, PCP

5) The products available include:

60245IEC 81: rubber sheathed arc welding electrode cable

60245IEC 82: polychloroprene or other equivalent synthetic elastomer sheathed arc welding electrode cable

Application

Flexible copper conductor rubber welding cable is used for connecting the electrode to the welding machine.

Specifications

1.Conductor: Tinned Copper, Copper or CCA Conductor

2.Rubber Insulated Welding Cable 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm, 150mm, 185mm, 240mm

Model description & characteristics

Item	Description/ Characteristics
Product Standard	IEC60245-4:2004; ISO; CCC
Product name	rubber sheath flexible welding cable electric cable 25mm2 35mm2 50mm2 70mm2 95mm2 120mm2
Product Model	rubber electrical cable
Rated voltage(U0/U)	450/750V
Insulation material	Rubber compound
Sheath material	Rubber compound(CPE)
Permissible continuous working temperature	Not exceed 60°C
Cross sectional area	1.5mm2- 400mm2
Cores	1core; 2 core; 3core; 4core; 5core; 3+1core
Packing	In rolls or use drums
Product Certification	1.Adopting International Standard Product Marking Certificate 2.Certificate For China Compulsory Product Certification

Common standards for flexible rubber welding electric cable :
Working Temperature ≤ 60º C

Nominal Section-Area of Conductor(mm2)	Structure of Conductor	Nominal Thik-ness of Sheath (mm)	Overall Diameter		Max. Conductor Resistance at 20º C (Ω /km)	Approx. Weight (kg/km)
Nominal Section-Area of Conductor(mm2)	Core no. /Dia. (no. /mm)	Nominal Thik-ness of Sheath (mm)	Min.	Max.	Max. Conductor Resistance at 20º C (Ω /km)	YH	YHF
10	322/0.20	1.8	7.5	9.7	1.91	146	153.51
16	513/0.20	2.0	9.2	11.5	1.16	218.9	230.44
25	798/0.20	2.0	10.5	13.0	0.758	316.6	331.15
35	1121/0.20	2.0	11.5	14.5	0.536	426	439.87
50	1596/0.20	2.2	13.5	17.0	0.379	592.47	610.55
70	2214/0.20	2.4	15.0	19.5	0.268	790	817.52
95	2997/0.20	2.6	17.0	22.0	0.198	1066.17	1102.97
120	1702/0.30	2.8	19.0	24.0	0.161	1348.25	1392.55
150	2135/0.30	3.0	21.0	27.0	0.128	1648.5	1698.72
185	1443/0.40	3.2	22.0	29.0	0.106	1983.8	2020.74
