5.6inch 640*480 RGB Interface Lcd Driving Board for Display Panel
- shenzhen
- T/T
You May Like
-
5.0inch 800*480 Tft Lcd Panel VGA Board to Drive RGB Interface Display
-
4.3inch Tft Lcd Module Driving Board
-
2.13inch 250*122 Outdoor E-paper Screen for Shelf Label
-
1.54inch Super Thin IPS E-paper Display for Price Tag
-
2.9inch 296*128 IPS Outdoor E-paper Lcd Display
-
Customized Flexible Segment Monochromatic E-ink/E-paper Dislay
Product Details
| Place of Origin | Guangdong, China | Brand Name | Wilcon | |
| Model Number | SW056N-VGA | Type | LCM |
Product Description
5.6inch VGA driving board
1. Product name: 5.6inch VGA driving board
2. Application: To drive wilcon SW056N-SV2-3
3. Function description:
3.1 VGA,CVBS1,CVBS2,(optional)video signal input
3.2 Power input:DC +12V
3.3 Mutil function OSD operation
3.4 Remote keyboard
4. Signal input standard: 4.1 CVBS: 1.0Vp-p75Ω
4.2 VGA: 800*600 640*480
5. Operation environment: 5.1 Operation Temperature:-10℃~+60℃
5.2 Operation Humidity: 90%RH
6. 6.1 Storage environment :6.1Storage Temperature: -20℃~+70℃
6.2 Storage Humidity: 90%RH
7. Working Voltage(5.6inch:
| Item | Min | Type | Max | Unit |
| Working V | 7.5V | 12 | 15.5V | V |
| Working A | 300 | 200 | 180 | mA |
8. LCD specification
8.1 Resolution(pixels);640*RGB*480 (Landscape)
8.2 Active Area;112.896(W)*84.672(H)mm
8.3 Pin NO: 40Pins
8.4 Interface type: 8/16/18/24 bit RGB interface
8.5 Backlight type and color:LED backlight/white

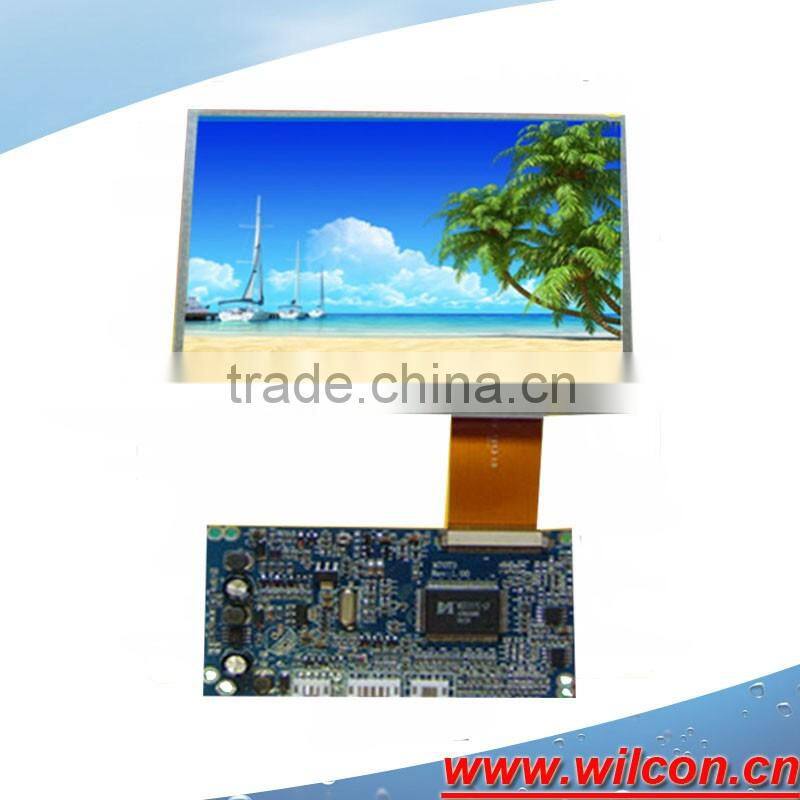

9.The lcd and board pic
10. The vga board

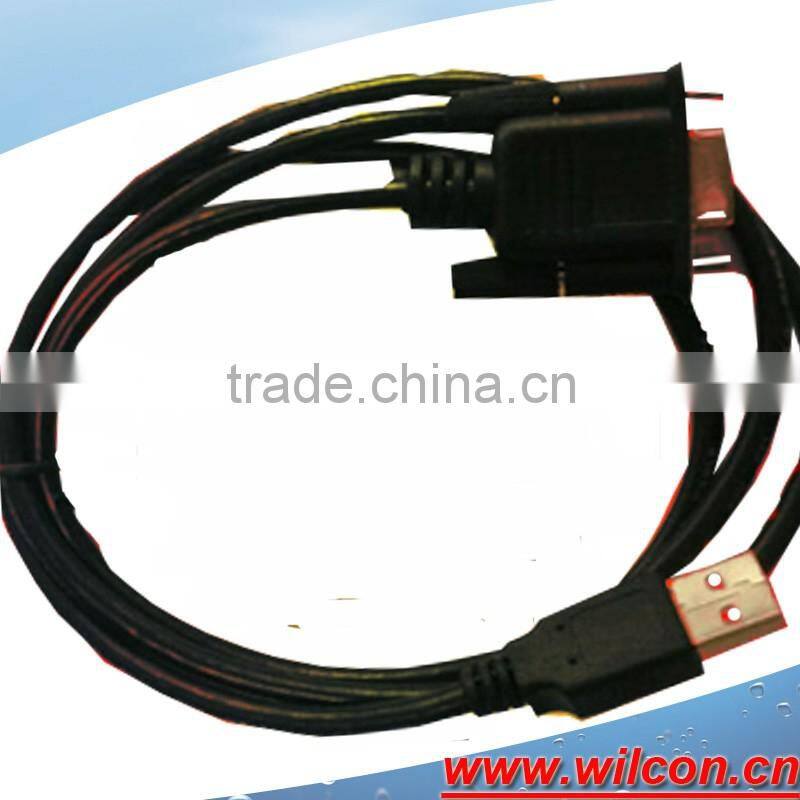

11.The VGA wire

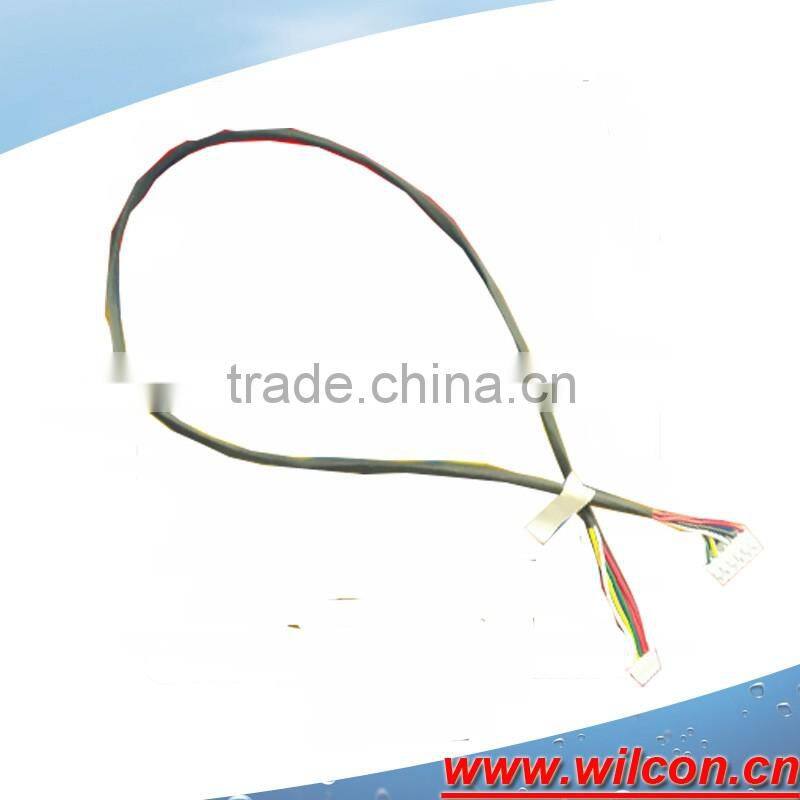

12.The LVDS wire

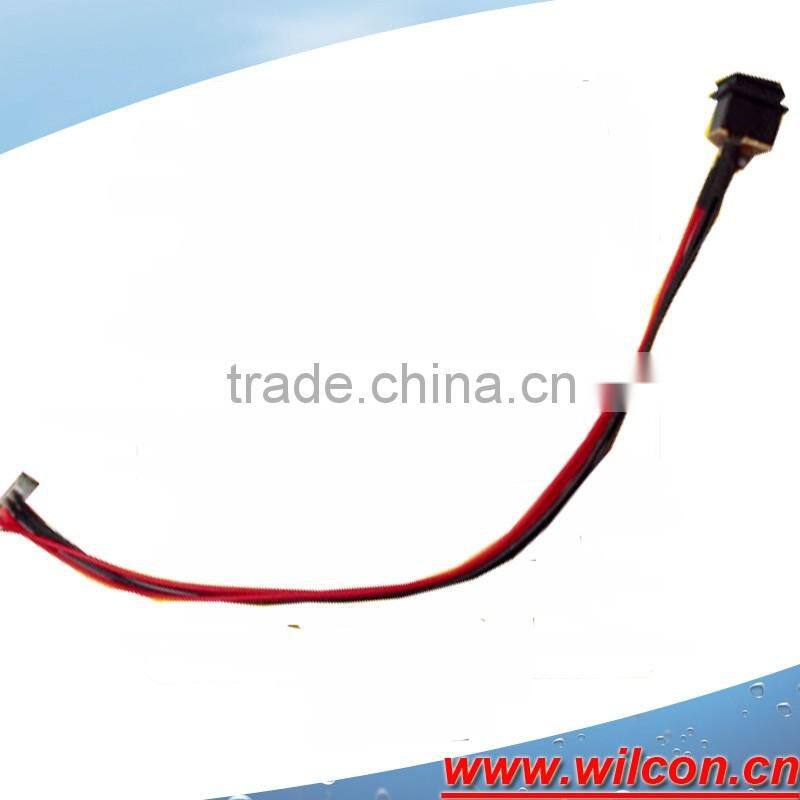

13.The backlight wire
14.The power line
