Home > Products > E-ink/E-paper > 2.13inch 250*122 full view angle E-ink price tag
2.13inch 250*122 full view angle E-ink price tag
US$ 0.1 - 99
/ Piece
1 Piece(Min. Order)
- Shenzhen
- Credit Card
You May Like
-
1.54inch IPS E-ink/E-paper shelf label for smart watch and wrist
-
10.1inch lvds 1000nits 1280*800 high brightness IPS module touch screen with USB interface CTP
-
10.1inch lvds interface 1280*800 high brightness IPS display touch screen with IIC capacitive panel
-
10.1inch 1000nits lvds intenrface 1280*800 IPS outdoor tft lcd display
-
2.8inch 240*320 ILI9341 700cd/m2 sunlight readable lcd module display
-
3.0inch 240*400 ILI9327 outdoor display touch screen with MCU interface
Product Details
| Place of Origin | Guangdong, China | Brand Name | Wilcon | |
| Model Number | SW0213E-SV01 | Type | Other, TFT, E-ink/E-paper |
Product Description
2.13inch E-ink price tag
Part 1:E-ink LCD display parameters
| 1 | Product name | 2.13inch E-ink price tag |
| 2 | Model number | SW0213E-SV01 |
| 3 | Size | 2.13INCH |
| 4 | DisplayType | COG graphic |
| 5 | Viewing angle | IPS |
| 6 | Display mode | Reflective E-ink lcd display |
| 7 | Resolution | 250*122 |
| 8 | Piexel size | 0.1942*0.1943 |
| 9 | Dimension | 59.2*29.2*1.05mm |
| 10 | Viewing area | 48.55*23.71mm |
| 10 | Color | Real black/white |
| 11 | Driving IC | SSD1673 for E-ink price tag |
| 12 | Pin number | 24PINS |
| 13 | Response time | 25℃ 600MS 0℃ 1S |
| 14 | Contrast | Super good |
| 15 | Sunlight readable | YES |
| 16 | Touch panel | NO |
| 17 | Warranty | 12 months |
| 18 | Packing material | Box |
| 19 | Shipment | Express*Air*Sea( E-ink lcd display ) |
Part 2:Operation Speficifactions of 2.13inch E-ink price tag
| 1 | Operature Temperature | 0 to 50℃ |
| 2 | Storage Temperature | -10 to 60 ℃ |
Part 3:Key features for E-ink lcd display
*Super Good/Wide View angle
*Excellent High Contrast
*Readable at sunlight
*Achieve Real Black/White
*Realize bistable Function
*Super Thin/Light(COG Graphic)
*Customized Solution
Part 4:Lead time for 2.13inch E-ink price tag
1.Sample:2 working days
2.Mass production:2-4weeks

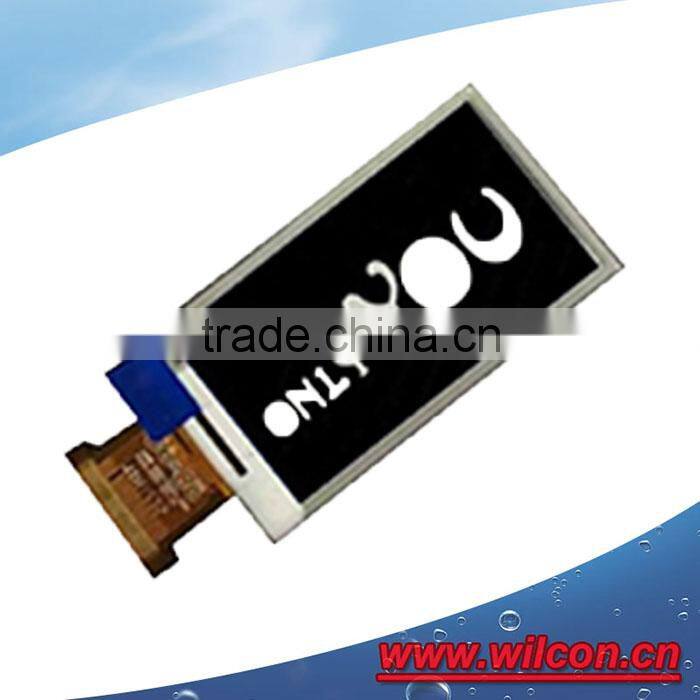

Part 5:2.13inch E-ink price tag
.

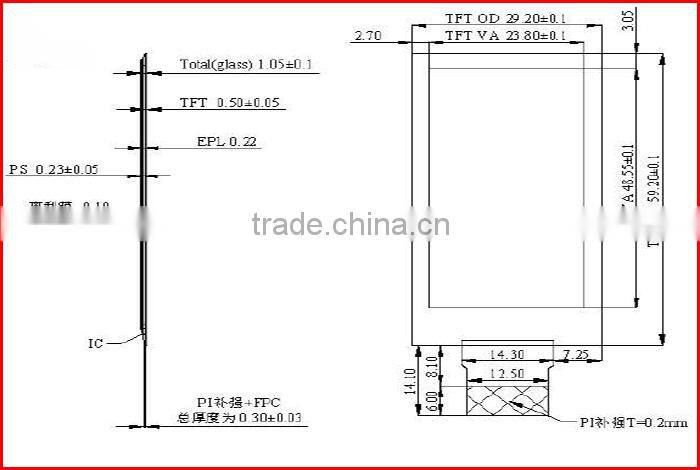

Part 6:The structure of the 2.13inch E-ink price tag

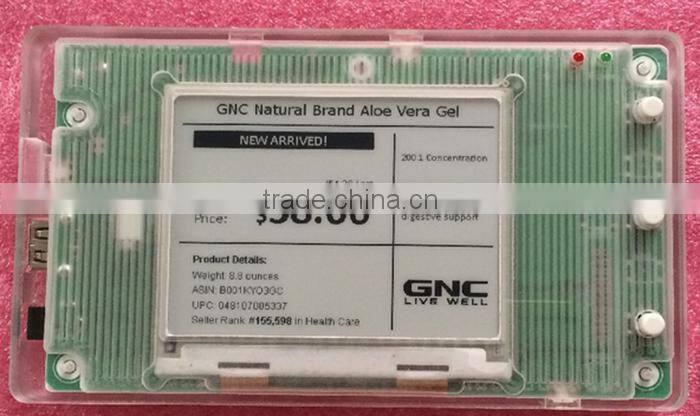

Demo kit for lighting the e-ink price tag
Packaging & Shipping
Our Services
If you are interested in the 2.13inch E-ink price tag,pls contact us for more information.Welcome any inquiry of e paper.
