2.0inch 240*320 MCU/RGB/SPI Multi Interface Tft High Brightness Transflective Screen

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Wilcon
Model Number	SW020FT-SVG		Type	Other, TFT, TFT

2.0Inch tft high brightness transflective screen

LCD specification

Part 1:LCD parameters
1	Product name	2.0inch tft outdoor transflective display
2	Model number	SW020FT-SVG
3	Size	2.0INCH
4	Type	TFT
5	Viewing angle	58/27/80/40
6	Display scale	4:3
7	Display mode	Transflective
8	Resolution	240*320
9	Piexel pitch	0.1275*0.1275
10	Dimension	36.7252.742.4mm
11	Active area	30.6*40.8
12	Color	262K
13	Color arragement	RGB
14	Interface	MCU/RGB/SPI
17	Response time	33ms
18	Contrast ratio	75:1
19	Brightness	90cd/m2
20	VDD	2.8V
21	Backlight	LED
22	Backlight color	White
23	LED lifetime	20000hours
24	Voltage for LED	3.2V
25	Current for LED	60mA
26	Consumption	/
27	Module weight	/
28	Drive IC	HX8347
29	Interface connect type	fpc
30	Surface tratement	Hard coationg
31	Pin number	24PINS
32	Warranty	41 months
33	Packing material	Box
34	Shipment	ExpressAirSea

Part 2:Operation Speficifactions
1	Operature Temperature	-20----70℃ degrees
2	Storage Temperature	-30----80℃ degrees

Part 3:Touch panel
1	Touch	RTP is available

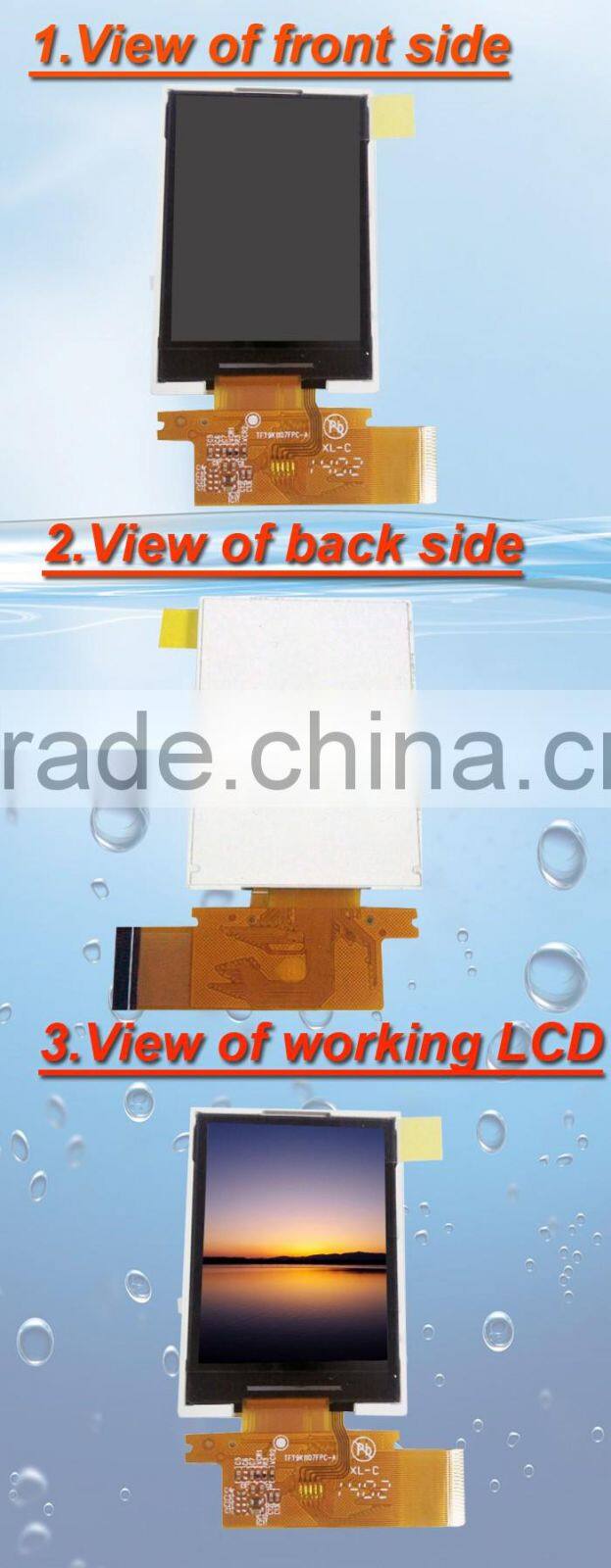

LCD PICS

LCD structure
