Home > Products > E-ink/E-paper > 1.54inch IPS E-ink/E-paper Shelf Label for Smart Watch and Wrist
1.54inch IPS E-ink/E-paper Shelf Label for Smart Watch and Wrist
US$ 0.1 - 99
/ Piece
1 Piece(Min. Order)
- Shenzhen
- Credit Card
You May Like
-
10.1inch Lvds 1000nits 1280*800 High Brightness IPS Module Touch Screen With USB Interface CTP
-
10.1inch Lvds Interface 1280*800 High Brightness IPS Display Touch Screen With IIC Capacitive Panel
-
10.1inch 1000nits Lvds Intenrface 1280*800 IPS Outdoor Tft Lcd Display
-
2.8inch 240*320 ILI9341 700cd/m2 Sunlight Readable Lcd Module Display
-
3.0inch 240*400 ILI9327 Outdoor Display Touch Screen With MCU Interface
-
3.0inch 240*400 ILI9327 Portrait Sunlight Readable Lcd Display Module With MCU Interface
Product Details
| Place of Origin | Guangdong, China | Brand Name | Wilcon | |
| Model Number | SW0154E-SV01 | Type | Other, TFT, E-ink/E-paper |
Product Description
1.54inch E-paper shelf label
Part 1:E-ink LCD display parameters
| 1 | Product name | 1.54inch E-paper shelf label |
| 2 | Model number | SW0154E-SV01 |
| 3 | Size | 1.54INCH |
| 4 | DisplayType | COG graphic |
| 5 | Viewing angle | IPS |
| 6 | Display mode | Reflective E-paper shelf label |
| 7 | Resolution | 200*200 |
| 8 | Piexel size | 0.138*0.138 |
| 9 | Dimension | 36.32*31.80*1.05MM |
| 10 | Viewing area | 27.60*27.60 |
| 10 | Color | Real black/white |
| 11 | Driving IC | SSD1608 for E-paper shelf label |
| 12 | Pin number | 24PINS |
| 13 | Response time | 25℃ 600MS 0℃ 1S |
| 14 | Contrast | Super good |
| 15 | Sunlight readable | YES |
| 16 | Touch panel | NO |
| 17 | Warranty | 12 months |
| 18 | Packing material | Box |
| 19 | Shipment | Express*Air*Sea( E-paper shelf label ) |
Part 2:Operation Speficifactions of 1.54inch E-paper shelf label
| 1 | Operature Temperature | 0 to 50℃ |
| 2 | Storage Temperature | -10 to 60 ℃ |
Part 3:Key features for E-paper shelf label
*Super Good/Wide View angle
*Excellent High Contrast
*Readable at sunlight
*Achieve Real Black/White
*Realize bistable Function
*Super Thin/Light(COG Graphic)
*Customized Solution
Part 4:Lead time for 1.54inch E-paper shelf label
1.Sample:2 working days
2.Mass production:2-4weeks
Part 5:1.54inch E-paper shelf label Pic
.
Part 6:The structure of the 1.54inch E-paper shelf label

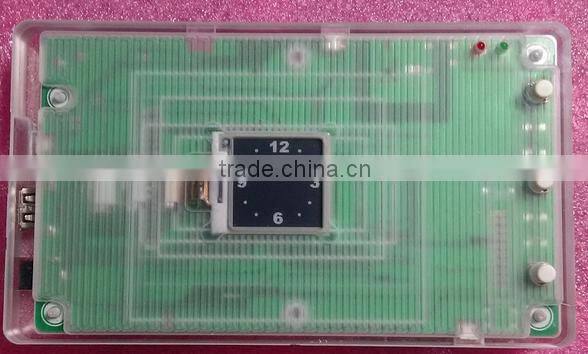

Demo kit for lighting the E-paper shelf label
Packaging & Shipping
Our Services
If you are interested in the 1.54inch E-paper shelf label ,pls contact us for more information
