10.1inch lvds interface 1280*800 high brightness IPS display touch screen with IIC capacitive panel

FOB Price

US$ 0.1 - 99 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	Wilcon
Model Number	SW101H-SV1280800-CTP(IIC)		Type	Other, TFT, TFT

10.1inch high brightness IPS lcd touch panel

LCD specification

Part 1:LCD parameters
1	Product name	10.1inch high brightness IPS lcd touch panel
2	Model number	SW101H-SV1280800-CTP(I2C interface)
3	Size	10.1INCH
4	Type	TFT
5	Viewing angle	IPS
6	Display scale	16:10
7	Display mode	Normally white, Transmissive
8	Resolution	1280*800
9	Piexel pitch	0.0565(W)*0.1695(H)
10	Dimension	222.5152.57.2MM
11	Active area	216.96*135.6
12	Color	16.7M
13	Color arragement	RGB
14	Interface	LVDS
17	Response time	35ms
18	Contrast ratio	800:1
19	Brightness	1000cd/m2
20	VDD	3V
21	Backlight	LED
22	Backlight color	White
23	LED lifetime	20000hours
24	Voltage for LED	9V
25	Current for LED	480mA
26	Consumption	4.32W
27	Module weight	/
28	Drive IC	/
29	Interface connect type	connector type
30	Surface tratement	Anti glare
31	Pin number	40PINS
32	Warranty	12 months
33	Packing material	Box
34	Shipment	ExpressAirSea

Part 2:Operation Speficifactions
1	Operature Temperature	-20----70℃ degrees
2	Storage Temperature	-30----80℃ degrees

Part 3:Touch panel
1	Touch	CTP (I2C interface)

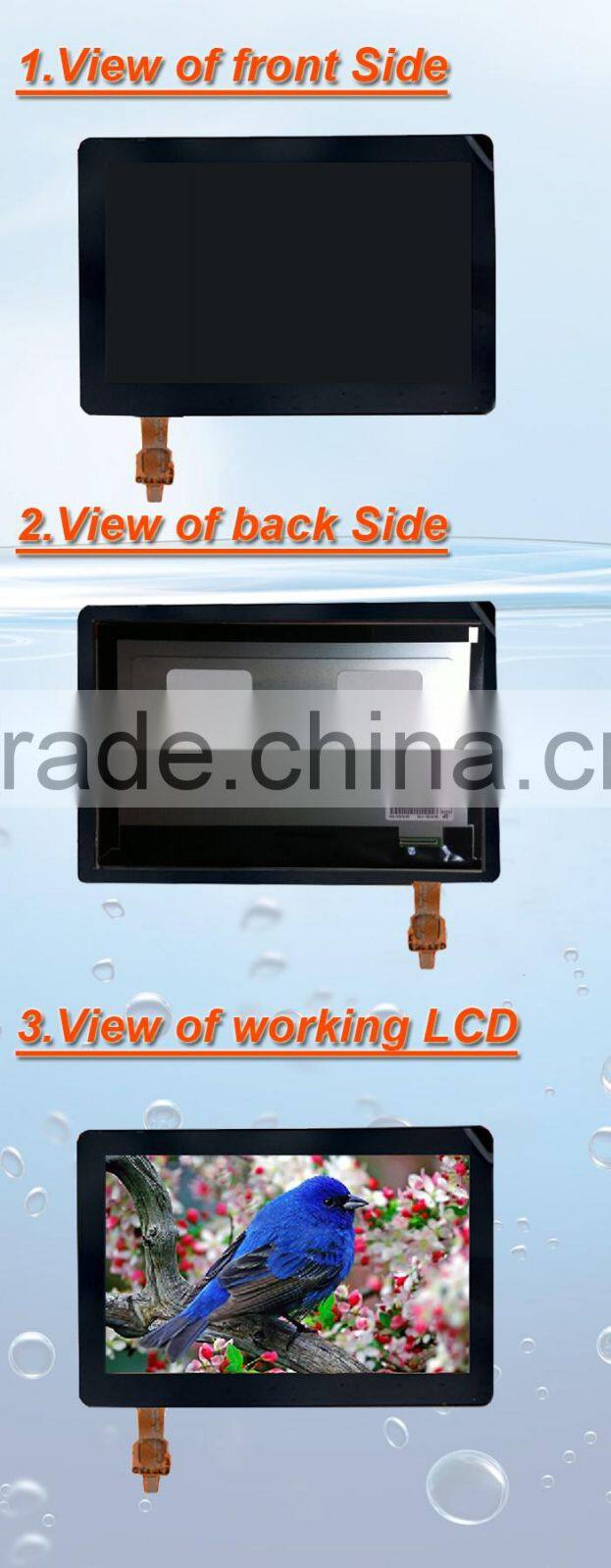

LCD PICS

LCD structure

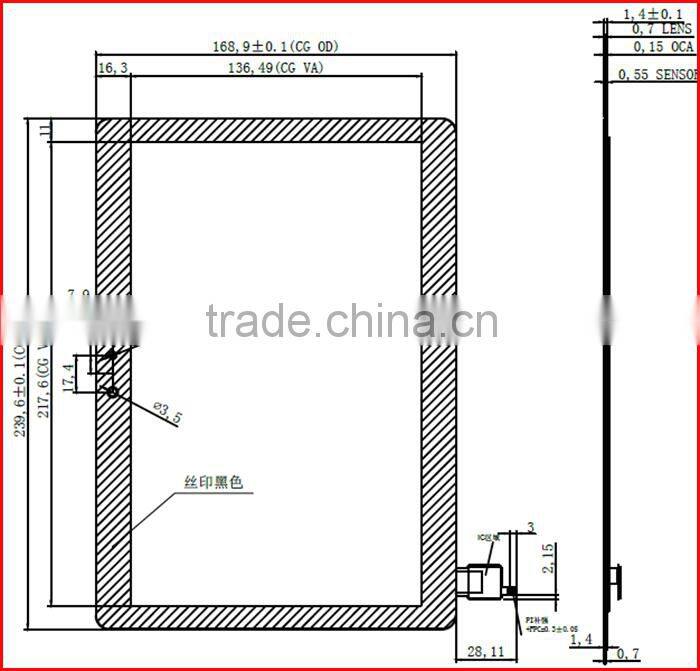

CTP structure
