10.4inch1024*768 tft lcd lvds VGA board for screen module

                                           10.4inch VGA driving board

1. Product name:  10.4inch VGA driving board

2. Application:   To drive wilcon SW104N-SV1/SW104N-SV1-TSP

3. Function description: SW101-VGA is a lcd monitor control board,the resulation is up to 1920*1080 @60HZ.It's                                                color reach 24bit potentially, H-Frequency signal range from 30 to 80KHz,V-Frequency                                                    signal 60 to 75Hz.,

                                           SW101-VGA supports synchronize automatic detection and Dynamic Contrast Control                                                   ,apply to  Sync separator for extracting Hsync and Vsync.

4. Signal input standard:  4.1 VGA:Vertical interface

                                              4.2 PC audio in:Optinal

5. Operation environment: 5.1 Operation Temperature: 0℃~+40℃

                                                5.2 Operation Humidity: 80%RH

6. 6.1 Storage environment :6.1Storage Temperature: -10℃~+60℃

                                                   6.2 Storage Humidity: 80%RH

7.Features

8. OSD language: Simplified Chinese, Traditional Chinese, English, French, German, Italian,  Spanish,                                                      Portuguese, Japanese, Korean

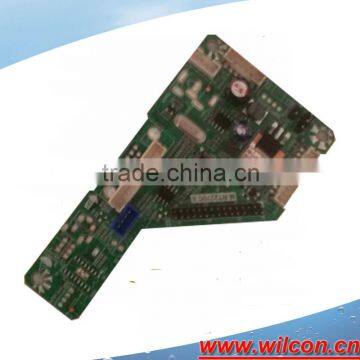

10. The vga board

11.The VGA wire

12.The LVDS wire

13.The backlight wire

14.The power line
