high voltage lightning arrester 6kV
US$ 9.52 - 11
/ Piece
3 Pieces(Min. Order)
- Shanghai or Ningbo
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SR | |
| Model Number | Y10W-6kV | Type | Insulation Sleeving | |
| Material | Porcelain | Application | High Voltage | |
| Rated Voltage | 6kV |
Product Description
Specifications
uitsparing zekering certificaat: ISO 9001: 2008; KEMA
Key Specifications/Special Features:
Type:Y10W-6kV
Rated voltage r.m.s: 6KV
Continuous operating voltage r.m.s: 5.1KV
1/5u s steep current residual voltage(KV): 21
8/20u s lighting impulse residual voltage(kV): 19
30/60u s switching impulse residual voltage(kV): 14
2ms rectangular current(A): 250
4/10u s high current impulse(kA): 100
Insulation housing withstand voltage(kV)
Lightning impulse:60
Power frequency:25

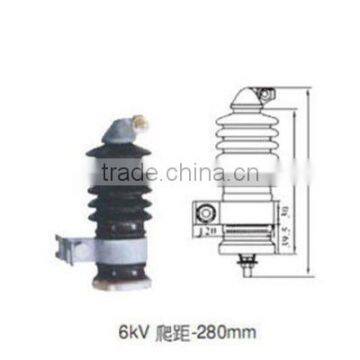

Creepage distance(mm): 280
