11kV porcelain lightning arrester
- Shanghai Ningbo etc
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SR | |
| Model Number | Y5W-11,Y10W-11 |
Product Description
Specifications
Metal Oxide lightning arrester1. rated voltage: 11kV
2. porcelain housing
3. certificaat: ISO 9001: 2008
Key Specifications/Special Features:
Type:Y5C-11,Y10C-11
Rated voltage r.m.s: 11KV
Continuous operating voltage r.m.s: 9.3KV
1/5u s steep current residual voltage(KV): 36.4(5kA), 38.4(10kA)
8/20u s lighting impulse residual voltage(kV): 32.5(5kA), 34.2(10kA)
30/60u s switching impulse residual voltage(kV): 24.7 (5kA), 25.7 (10kA)
2ms rectangular current(A): 100(5kA), 250(10kA)
4/10u s high current impulse(kA): 65(5kA), 100(10kA)
Insulation housing withstand voltage(kV)
Lightning impulse:75
Power frequency:30

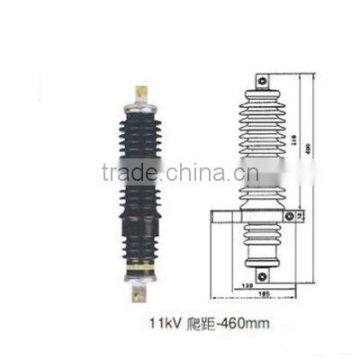

Creepage distance(mm): 460
