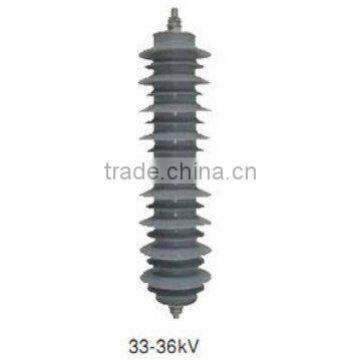

lightning arrester 36kV
- Shanghai Ningbo etc
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SR | |
| Model Number | YH5C-36,YH10C-36 |
Product Description
Specifications
metal oxide lightning arrester1. rated voltage: 36kV
2. polymeric housing
3. certification: ISO 9001: 2008
Key Specifications/Special Features:
Type:YH5C-36,YH10C-36
Rated voltage r.m.s: 36KV
Continuous operating voltage r.m.s: 29kV
1/5u s steep current residual voltage(KV): 115(5kA),119 (10kA)
8/20u s lighting impulse residual voltage(kV): 105(5kA), 110(10kA)
30/60u s switching impulse residual voltage(kV): 78(5kA), 84(10kA)
2ms rectangular current(A): 250(5kA), 400(10kA)
4/10u s high current impulse(kA): 65(5kA), 100(10kA)
Insulation housing withstand voltage(kV)
Lightning impulse:185
Power frequency:85
Creepage distance(mm): 1340
