Home > Products > lightning arrester > high voltage lightning arrester 15-18kV

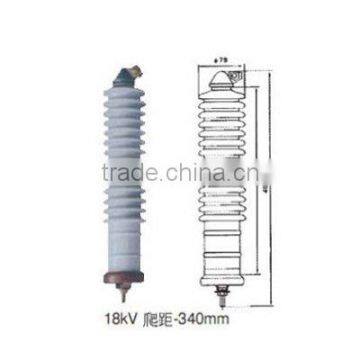

high voltage lightning arrester 15-18kV
- Ningbo/Shanghai
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | SR | |
| Model Number | YH5W-18, YH10W-18 | Type | Insulator | |
| Material | Other, Composite Polymer, porcelain housing | Application | High Voltage | |
| Rated Voltage | 18kV |
Product Description
Specifications
lightning arrester 18kV1.Material:ceramic
2.Creepage distance of lighnting arrester:340mm
3.certificat: ISO 9001: 2008;
Key Specifications/Special Features:
Type:YH5C-18, YH10C-18
Rated voltage r.m.s: 18KV
Continuous operating voltage r.m.s: 15.3KV
1/5u s steep current residual voltage(KV): 60 (5kA), 63 (10kA)
8/20u s lighting impulse residual voltage(kV): 53 (5kA), 58 (10kA)
30/60u s switching impulse residual voltage(kV): 40 (5kA), 45 (10kA)
2ms rectangular current(A): 100(5kA), 250(10kA)
4/10u s high current impulse(kA): 65(5kA), 100(10kA)
Insulation housing withstand voltage(kV)
Lightning impulse:125
Power frequency:55
Creepage distance(mm): 340
