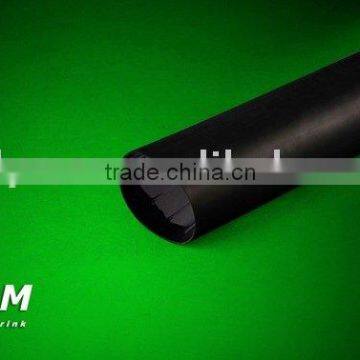

Heat shrinkable tube
Negotiable
/ Meter
1000 Meters(Min.Order)
- Dalian China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | S3 | Type | Heat Shrinkable | |
| Material | PE |
Product Description
Specifications
Hanging lamps protection of heat shrink tubeAdhesive coat
Flame retardant Raychem:SST
Size from 12 to 260mm
Heavy wall
Hanging lamps protection of heat shrink tube
S3 Flame retardant Dual Wall Heat Shrinkable Tubing
Voltage Class 1kV Ideal for electrical insulation and protection of outdoor electrical equipments
Dual wall, flame retardant abrasion resistant heat shrinkable tubing with adhesive liner.
Applications
Insulation protection for outdoor electrical equipments and connections (such as hanging lamps, external lighting system, electrical cable for motors and other cabling joints) in sea-going vessel, off-shore oil platform, shipyard and harbor.
Water sealant applications for outdoor electrical equipments
Other applications which require mechanical protection and waterproof sealing against seawater, moisture and other common contaminates
Temperature Range
Operating Temperature : -55~ 105 ºC
Shrink Temperature : 105 ~ 135 ºC
Color: Black, Red
Certification
·Type certified by DNV
·Type Certified by CCS
Product Code Cross References
·Raychem/Tyco : SST
·DSG Canusa : FCFW
3M : HDT
Technical Details
| Test Item | Test Method | Typical Value |
| Tensile strength | ASTM D2671 | ≥10Mpa |
| Break down elongation | ASTM D2671 | ≥450% |
| Tensile strength after aging | ASTM D2671 | ≥10Mpa |
| Break down elongation after aging | ASTM D2671 | ≥400% |
| Upright combustibility | ASTM D2863 | FV-1 |
| Water absorption | ASTM D570 | ≤0.5% |
| Heat shock | 200 for 30min | No drop, no flow |
| Low temperature flexibility | -40 for 4h | No cracking |
| Dielectric strength | ASTM D2671 | ≥15kV/mm |
| Peel off strength to PEX | ASTM D2671 | ≥30N/cm |
| Peel off strength to steel | ASTM D2671 | ≥30N/cm |
Product Selection
| Product Code | Min. wall thicknessafter free recovery(mm) | Tube shape | Standard Length Per Piece(m) | Standard Packing(pc/carton) | Carton Size (cm) |
| 12/4 | 2.0 | 1.22 | 650 | 127*39*44 | |
| 16/5 | 2.2 | 1.22 | 450 | 127*39*44 | |
| 19/6 | 2.5 | 1.22 | 350 | 127*39*44 | |
| 22/6 | 2.5 | 1.22 | 250 | 127*39*44 | |
| 25/8 | 2.5 | 1.22 | 190 | 127*39*44 | |
| 28/6 | 2.5 | 1.22 | 170 | 127*39*44 | |
| 33/8 | 2.5 | 1.22 | 130 | 127*39*44 | |
| 35/12 | 2.5 | 1.22 | 100 | 127*39*44 | |
| 40/12 | 2.5 | 1.22 | 90 | 127*39*44 | |
| 45/13 | 2.5 | 1.22 | 70 | 127*39*44 | |
| 55/16 | 2.7 | 1.22 | 60 | 127*39*44 | |
| 65/19 | 2.8 | 1.22 | 50 | 127*39*44 | |
| 75/22 | 3.0 | 1.22 | 40 | 127*39*44 | |
| 85/25 | 3.0 | 1.22 | 30 | 127*39*44 | |
| 95/25 | 3.0 | 1.22 | 25 | 127*39*44 | |
| 115/34 | 3.0 | 1.22 | 25 | 127*39*44 | |
| 130/36 | 3.0 | 1.22 | 20 | 127*39*44 | |
| 140/42 | 3.0 | 1.22 | 20 | 127*39*44 | |
| 150/42 | 3.0 | 1.22 | 20 | 127*39*44 | |
| 160/50 | 3.0 | 1.22 | 20 | 127*39*44 | |
| 175/58 | 3.0 | 1.22 | optional | optional | |
| 200/65 | 3.0 | 1.22 | optional | optional | |
| 230/75 | 3.0 | 1.22 | optional | optional | |
| 260/85 | 3.0 | 1.22 | optional | optional |
ID: Internal Diameter
Tube shape: "" Round Oval, "": Flat
