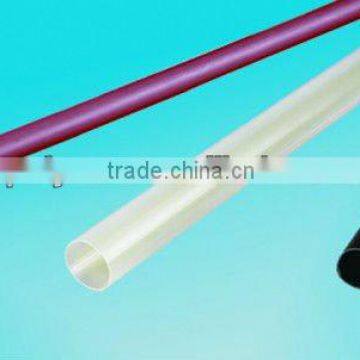

S3 (n) Electrical Insulation Heat Shrinkable Tubing
- Dalian
- T/T
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | justup | |
| Model Number | S3(n) |
Product Description
Specifications
1.Voltage Class1k~15kV2. ideal for mechanical and environmental protection cable joint and gas pipeline
Ideal for mechanical and environmental protection of CATV cable, joint and gas pipeline
Medium wall Heat Shrinkable tubing with halogen-free radiation cross-linked polyolefin outer layer and heat melt adhesive inner layer.
Applications:
· Protection of CATV cable/cable joints, gas pipeline & low voltage electrical wiring
Features/Benefits:
·Halogen free, environmental friendly
·Non-flame retardant
·Adhesive-lined, waterproof and seal against moisture
·High resistance to abrasion and impact
Temperature Range:
·Operating Temperature : -55 ºC ~ 90 ºC
·Shrink Temperature : 125 ºC
Colour:Black
Product Code Cross References
Raychem : MWTM
DSG Canusa : CFW / CFTV
LG : LG-PMWT
Technical Details
Test item | Test method | Typical value |
Tensile Strength | ASTM D2671 | 12MPa |
Elongation | ASTM D2671 | 400% |
Specific Gravity | ASTM D792 | 1.2 |
Elongation after Heat Aging (168 hrs at 150) | ASTM D2671 | 350% |
Tensile strength after heat aging | ASTM D2671 | 12MPa |
Low Temperature Flexibility (4 hrs at -55) | ASTM D2671 | No cracking |
Hardness (Shore D) | ASTM D2240 | 60D |
Heat shock (4hrs at 200) | ASTM D2671 | No cracking or flowing |
Adhesive Softening Point | ASTM-E28 | 85 |
Adhesive Peel Strength to P.E. | ASTM D1000 | 110N/25mm |
Adhesive Peel Strength to Aluminum | ASTM D1000 | 80N/25mm |
Dielectric Strength | ASTM D2671 | 20kV/mm |
Volume Resistivity | ASTM D257 | 1014Ω.cm |
Copper Corrosion | ASTM D2671 | No Corrosion |
Water Absorption | ASTM D570 | 0.5% |
Fungus Resistance | ASTM G21 | No Growth |
Product Selection
Product Code | Min. wall thickness after free recovery(mm) | Standard Length Per Piece (m) |
S3(N) -φ8/2 | 1.7 | 1.22 |
S3(N) -φ9/3 | 1.7 | 1.22 |
S3(N) -φ12/4 | 2.0 | 1.22 |
S3(N) -φ16/5 | 2.2 | 1.22 |
S3(N) -φ19/6 | 2.5 | 1.22 |
S3(N) -φ28/9 | 2.5 | 1.22 |
S3(N) -φ33/10 | 2.5 | 1.22 |
S3(N) -φ40/12 | 2.5 | 1.22 |
S3(N) -φ50/16 | 2.7 | 1.22 |
S3(N) -φ65/19 | 2.8 | 1.22 |
S3(N) -φ75/22 | 3.0 | 1.22 |
S3(N) -φ85/25 | 3.0 | 1.22 |
S3(N) -φ95/25 | 3.0 | 1.22 |
S3(N) -φ100/30 | 3.0 | 1.22 |
S3(N) -φ115/34 | 3.0 | 1.22 |
S3(N) -φ125/40 | 3.0 | 1.22 |
S3(N) -φ140/42 | 3.0 | 1.22 |
S3(N) -φ150/45 | 3.0 | 1.22 |
S3(N) -φ160/50 | 3.0 | 1.22 |
S3(N) -φ180/60 | 3.0 | 1.22 |
S3(N) -φ210/70 | 3.0 | 1.22 |
S3(N) -φ225/75 | 3.0 | 1.22 |
S3(N) -φ260/85 | 3.0 | 1.22 |
