Handheld 200x Mini USB Digital Microscope

Specifications

♦ Overview of Handheld 200x Mini USB Digital Microscope:

The  Handheld 200x Mini USB Digital Microscope is a high-tech while easy to use Digital Microscope. With this unit you may see a unique & “bigger” world.
The applicable in many fields such as visual inspection on electronic components, and materials in a full range of uses, beauty shop and education.
Its 2M image sensor presents vivid and sharp amazing image. 8 LEDs with brightness adjustable are good for any inspection enviornment.
The measurement software can help you to measure tiny objects easily and precisely (as small as 0.001mm).
All those excellent features make it a good aid for your daily inspection on tiny objects.

♦ Major Features of Handheld 200x Mini USB Digital Microscope:

* 2M, up to 5M by interpration
* Magnifications: 10x - 200x
* With Measurement function
* Compatible with Windows and Mac
* OEM supported
* 1-year manufacturer warranty

♦ Specification of Handheld 200x Mini USB Digital Microscope:

* Image sensor: 2 Mega Pixels (interpolated to 5M)
* Focus Range: Manual focus from 10mm to 500mm
* Frame Rate: Max 30f/s under 600 Lus Brightness
* Magnification Ratio: 10x to 200x
* Light source: 8 LED (adjustable by control wheel)
* Still capture resolution: 2560x2048 (5M), 2000x1600, 1600x1280 (2M), 1280x1024,
                                            1024x960, 1024x768, 800x600, 640x480, 352x288, 320x240
* Video capture resolution: 2560x2048 (5M), 2000x1600, 1600x1280 (2M), 1280x1024,
                                               1024x960, 1024x768, 800x600, 640x480, 352x288, 320x240
* Frame Rate: Max 30f/s under 600 Lus Brightness
* Video format: AVI
* Photo format: JPEG or BMP
* PC interface: USB2.0
* Power source: 5V DC from USB port
* Operation system: Windows2000/XP/Vista/Win7/Win8, Mac OS X 10.6 or above
* OSD language: English, German, Spanish, Korean, French, Russian
* Bundle software: MicroCapture with measurement & calibration function
* Working temperature: -20℃ ~ +60℃
* Size: 110mm (L) x 33mm (R)

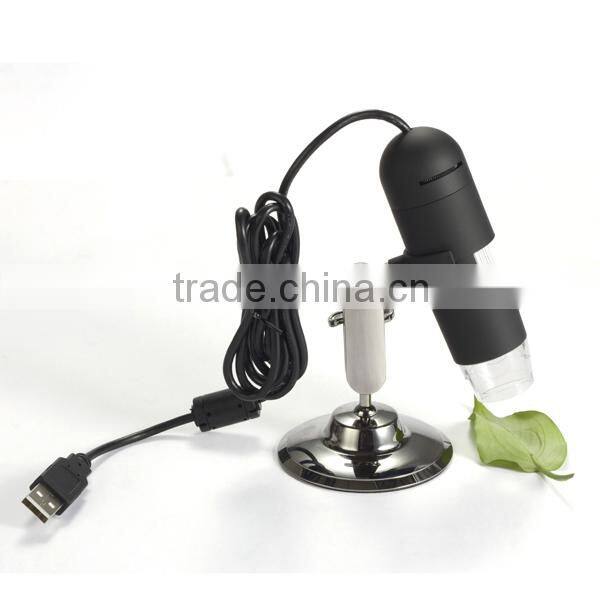

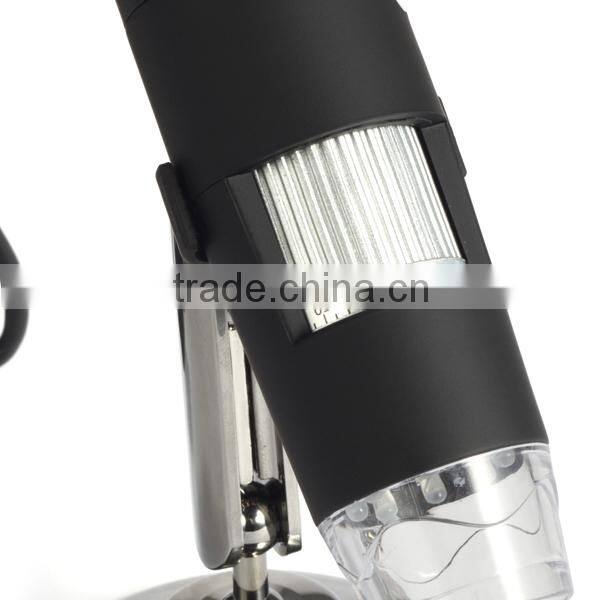

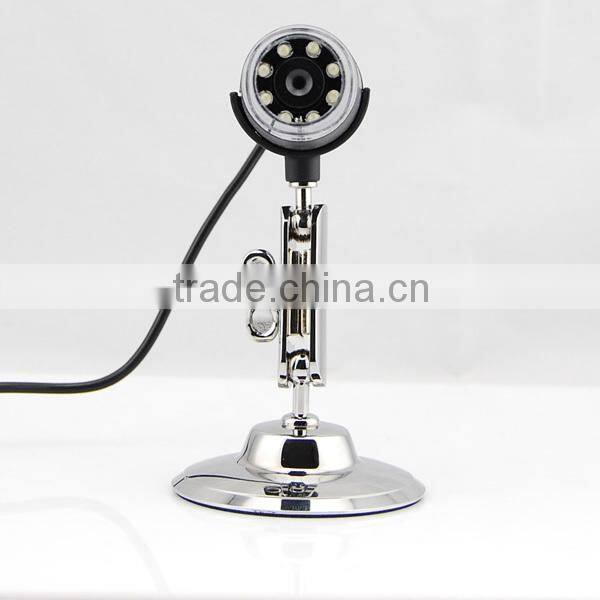

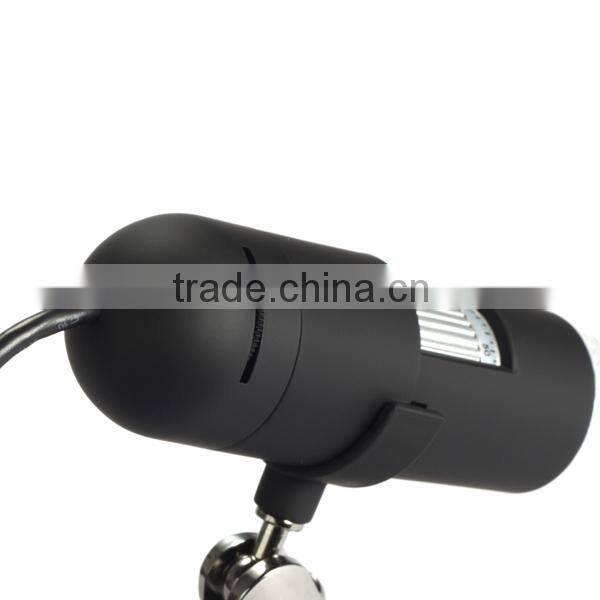

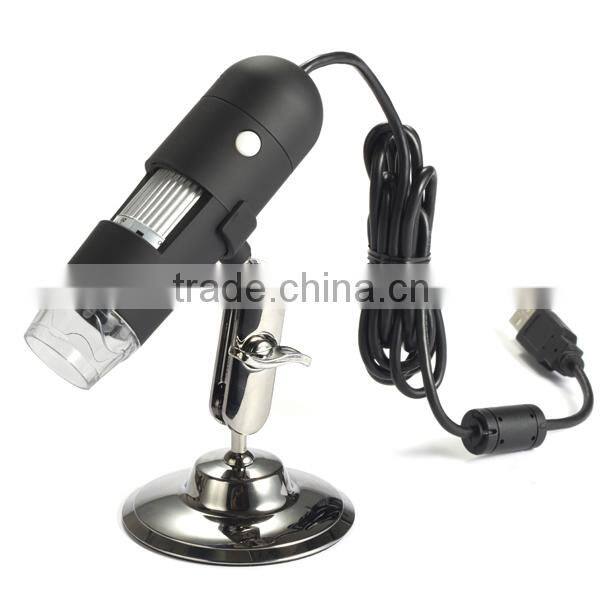

♦ Product Pictures of Handheld 200x Mini USB Digital Microscope:

♦ Packaging info of Handheld 200x Mini USB Digital Microscope:

Gift box,

20pcs/carton

8.2kgs/carton

45.5(L)*34.5(W)*30.0(H) CM

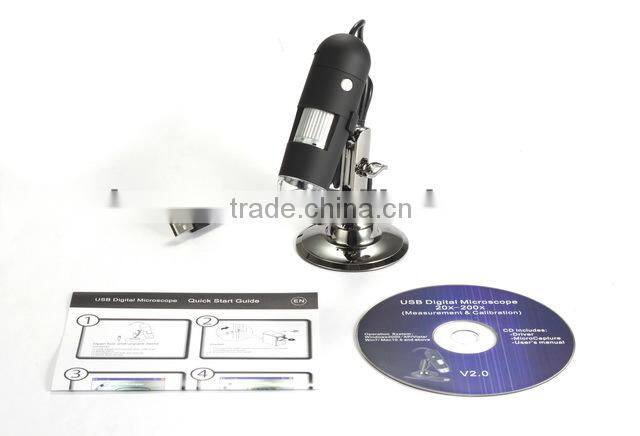

♦ Package contents:

Microscope

Metal stand

Software CD

User’s manual
