Home > Products > Ex Componet > IECEx ATEX Certified Explosion Proof Potentiometer Component for Board Front Mounting and Board Back Type Most Popular
IECEx ATEX Certified Explosion Proof Potentiometer Component for Board Front Mounting and Board Back Type Most Popular
US$ 120 - 130
/ Piece
1 Piece(Min. Order)
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Explosion Proof (flash) Buzzer for Board Back Type Mounting
-
IECEX Certified Full Plastic Explosion Proof Position Switch
-
ATEX & IECEX Certified Explosion Proof Emergency Stop Push Button for Panel Mounting Type 2/4 Poles
-
ATEX & IECEX Certified ZONE1 & ZONE 2 Explosion Proof Emergency Stop Push Button Turn to Release
-
ATEX & IECEX Certified ZONE1 & ZONE 2 Explosion Proof Emergency Stop Push Button Key to Release
-
ATEX & IECEX Certified ZONE1 & ZONE 2 Explosion Proof E-Stop Push Button Key to Release
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CZ | |
| Model Number | CZ0203 | Type | Rotary Potentiometer | |
| Technology | Other, Plastic | Resistance | 100-200M | |
| Resistance Tolerance | 1% | Rated Power | 0.1W | |
| Max. Operating Voltage | 200V DC | Operating Temperature | -40℃ to 50℃ |
Product Description
Desceiption:
Mounting Type Shpw:
Main Technical data:
Module:
| Ex mark | Ex de IIC Gb |
| Intended use | Can be used in zone 1, zone 2 |
| Ambient temperature | -55 ℃ ≤Ta ≤ 60 ℃ |
| Operating temperature | -40 ℃ ...+85 ℃ |
| Degree of protection | IP20 |
| Rated voltage | 200V DC or power rating, whichever is smaller |
| Rated power | 0.1W |
| Scale | 0-100% |
Operation Head:
| Ex mark | Ex e II Ex tD A21 |
| Intended use | Can be used in zone 1, zone 2 |
| Ambient temperature | -40 ℃ ≤Ta ≤ 55 ℃ |
| Degree of protection | IP66 |
| Material | Polyamide |
Order Specification:

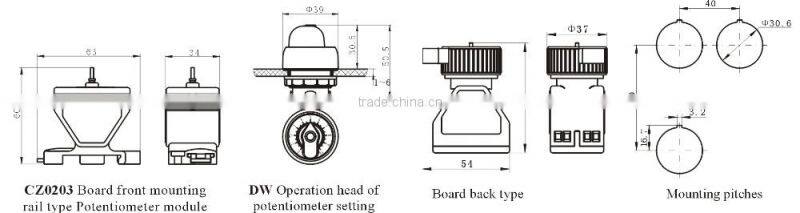

Outline dimensions:
