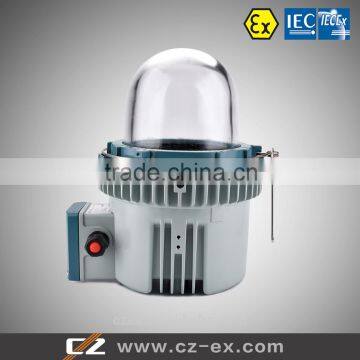

ATEX&IECEx Certified Zone 1 Explosion-proof Light Fittings

FOB Price

US$ 200 - 800 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Description:

Light Characteristic:

Main Technical Data:

Ex mark	Ex de II C T* Gb Ex tb IIIC T195℃/T130℃/T95℃/T80℃ Db
Intended use	Can be used in zone 1, zone 2, zone 21 and zone 22
Degree of protection	IP66
Rated voltage	220V AC 50Hz
Ambient temperature use	-40℃ to +40℃/+50℃
Terminal	L1, N cage type terminals= 2-2.5mm2, PE terminal 2x10mm2
Cable entry	Moulded plastic 1xM25x1.5 cable gland and 1xM25x1.5 plug
Light source code & Power	See order Specification
Lampholder code	E27/E70

Order Specification:

Cable Gland Optional:

Luminous Intensity Distribution Curve:

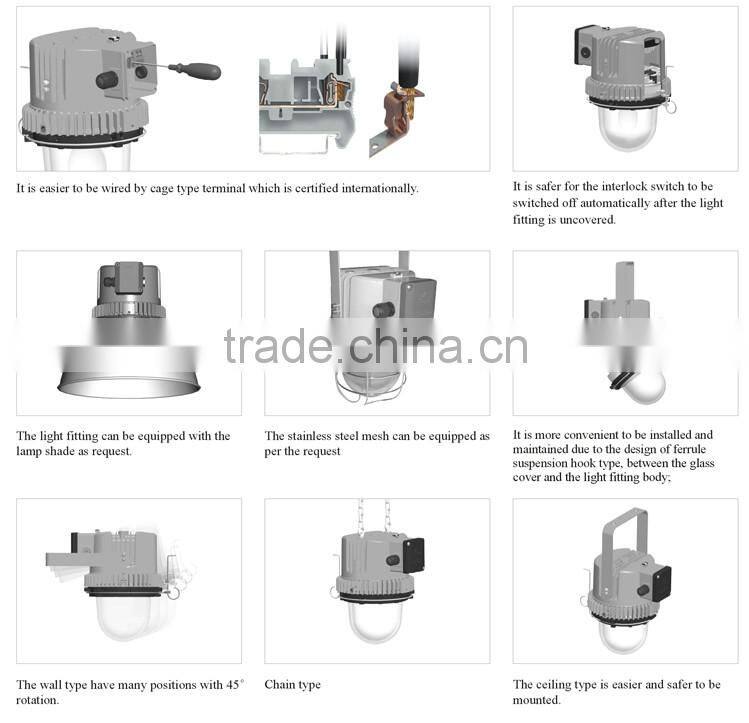

Mounting Accessories:

Spare parts of light source:

Outline dimensions:
