Hot Sale IECEx&ATEX Certified 63A Explosion Proof Plastic Sockets and Plugs

FOB Price

US$ 600 - 2,000 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

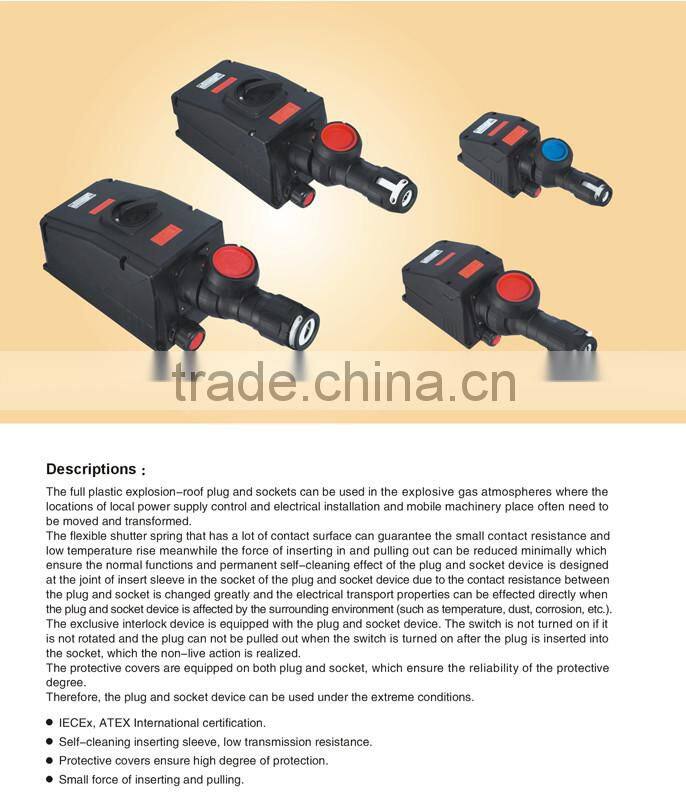

Description:

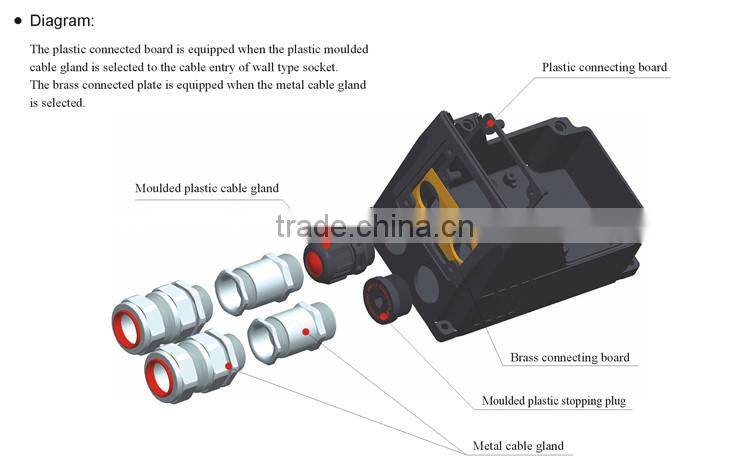

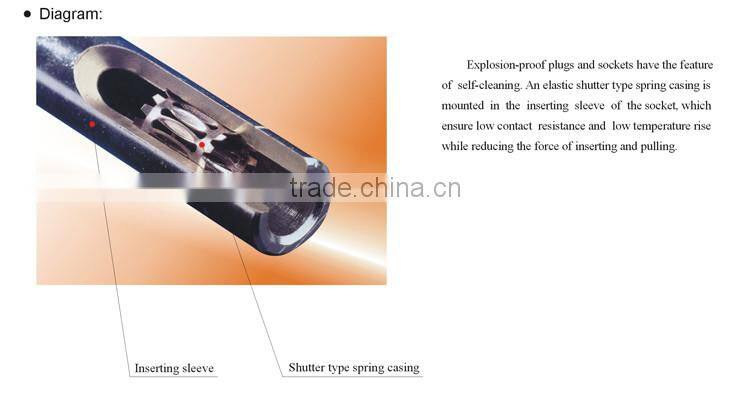

Diagram:

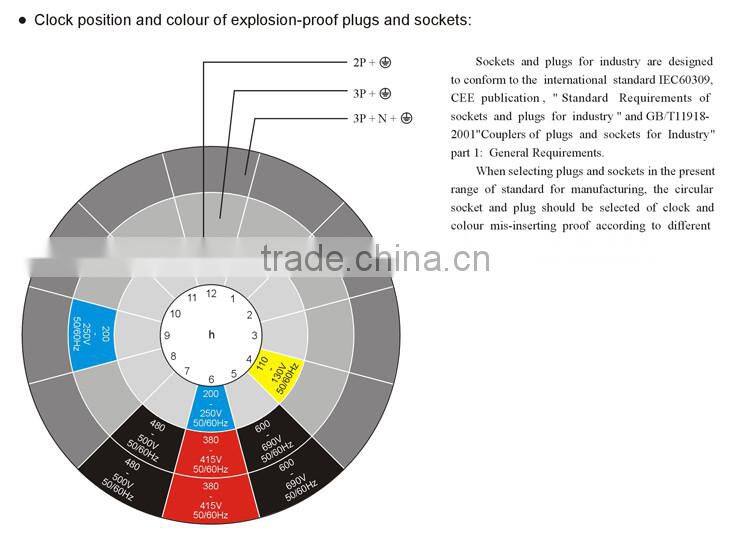

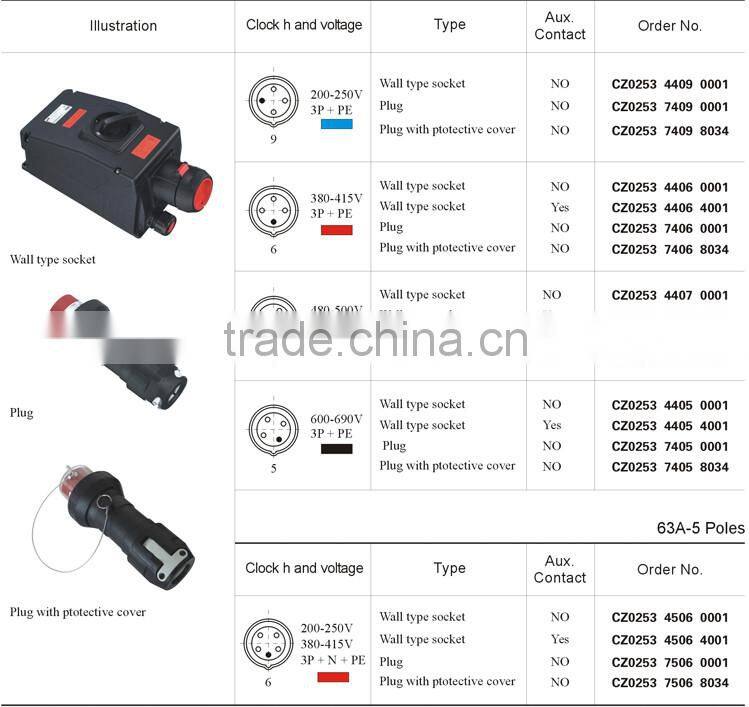

Clock position:

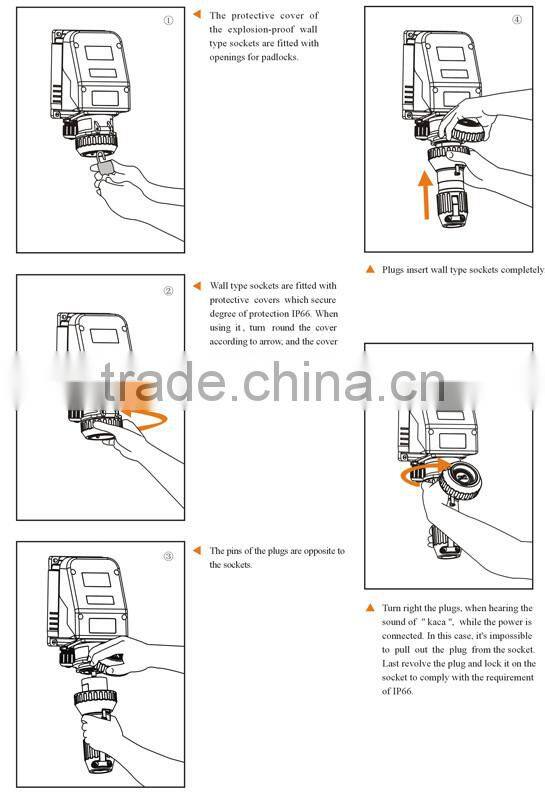

Installation:

Specification For Each:

Rated voltage/Rated current: Up to 690V/max 63A

Ex mark	Ex de IIC T5/T6 Gb Ex tD A21 T95℃/T80℃ Ta≤55℃/40℃
Intended use	Can be used in zone 1, zone 2, zone 21 and zone 22
Ambient temperature	-40 ℃≤Ta≤55 ℃
Degree of protection	IP66
Frequency	50/60Hz
Rated voltage	up to 690V
Rated current	max 63A
Cable entry	Moulded plastic 1xM50
Plug	Cable outside diameter Φ15-35mm

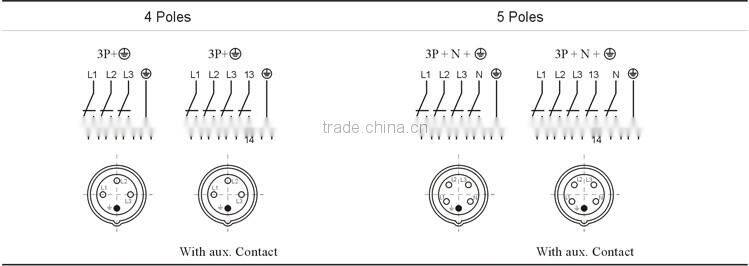

Wiring diagram of socket and plug:

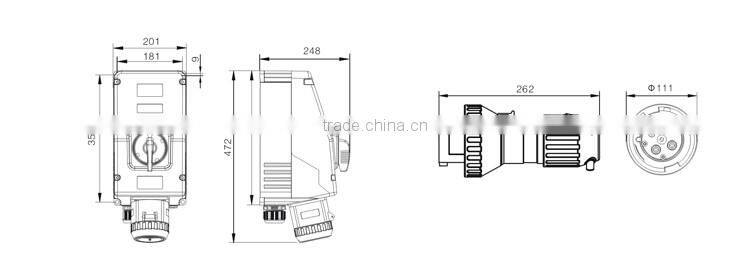

Outline Dimensions:

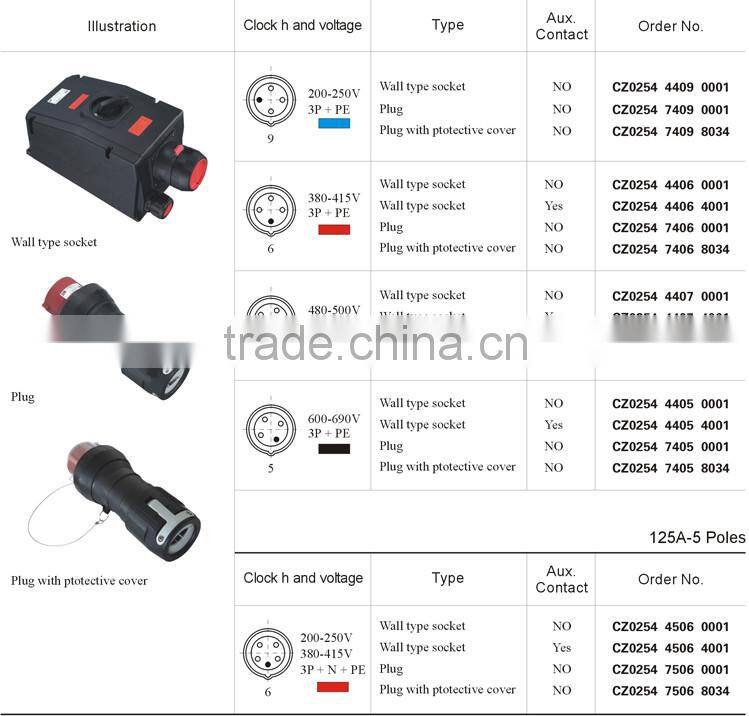

Rated voltage/Rated current: Up to 690V/max 125A

Ex mark	Ex de IIC T5 Gb Ex tD A21 T95℃ Ta≤45℃
Intended use	Can be used in zone 1, zone 2, zone 21 and zone 22
Ambient temperature	-40 ℃≤Ta≤45 ℃
Degree of protection	IP66
Frequency	50/60Hz
Rated voltage	up to 690V
Rated current	max 125A
Cable entry	Moulded plastic 1xM63
Plug	Cable outside diameter Φ20-57mm

Wiring diagram of socket and plug:

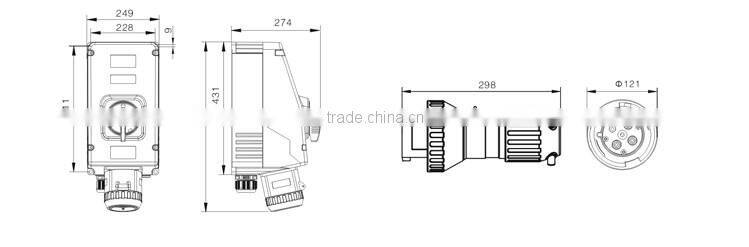

Outline Dimensions:
