Stainless Steel Customized Explosion Proof Control Box Most Popular

FOB Price

US$ 220 - 1,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

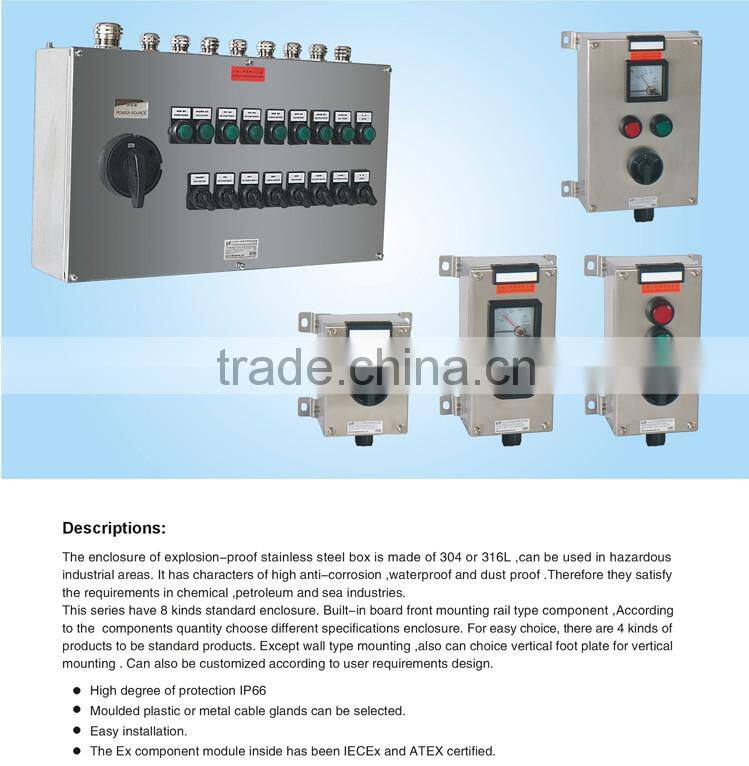

Description:

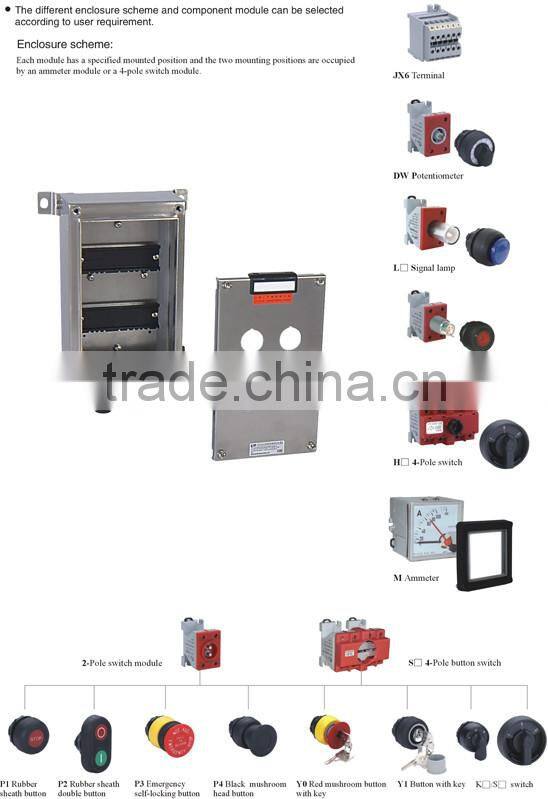

Enclosure Scheme:

Main Technical Data:

Ex mark	Ex/d/e/mb II C T6/T5/T4 Gb DIP A21 TA, T6/T5/T4
Intended use	Can be used in zone 1, zone 2 zone 21 and zone 22
Degree of protection	IP66
Ambient temperature	-40 ℃ ≤Ta+40 ℃ /+55 ℃
Rated voltage	max 500V
Rated current	max 16A
Component terminals	2x2.5mm2
PE terminal	4mm2
Enclosure material	SS304/SS316L(surface of wire drawing)/Carbon steel(surface spraung plastic powder)
Material thickness	1.5mm/2mm
Earthing	M6
Cable entry	2xM25, cable outside diameter Φ 8-17mm; 1xM32, cable outside diameter Φ 12-21mm
Mounting way	Wall type/Vertical mounted

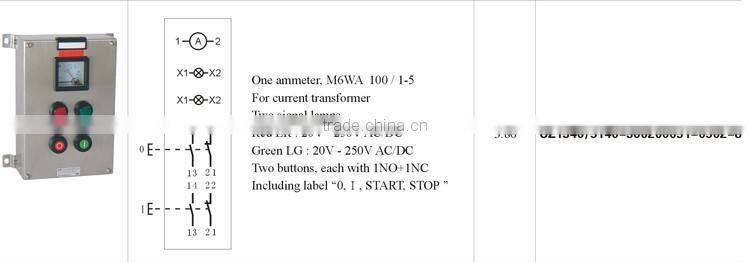

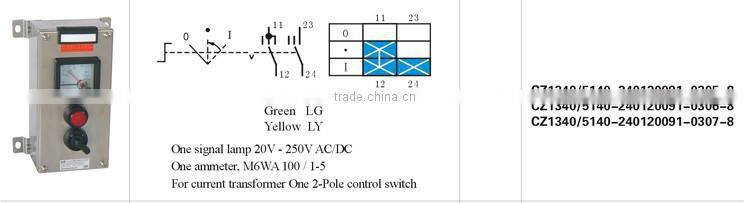

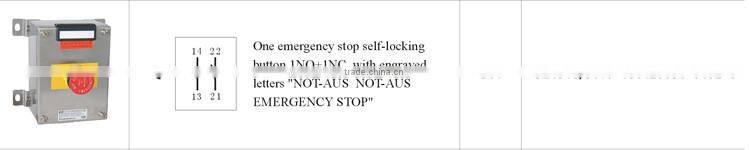

Order Specification Example:

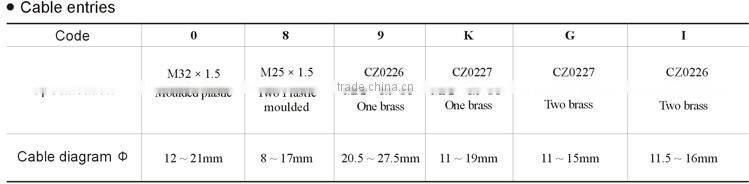

Cable Entry Specification:

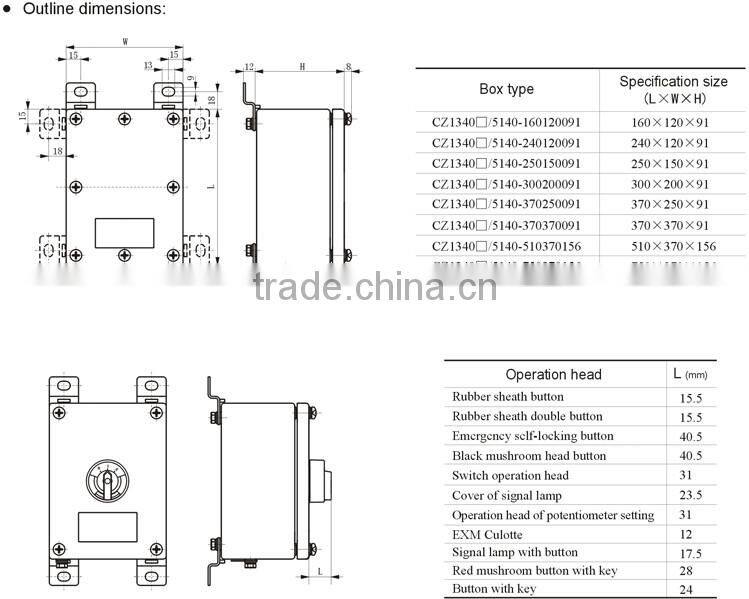

Outline dimensions
