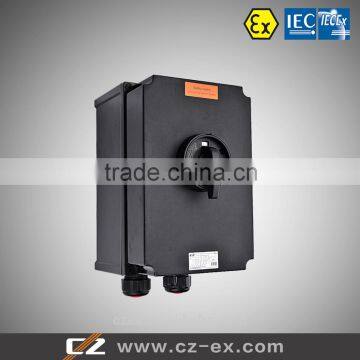

IECEx & ATEX Certified Full Plastic Explosion Proof Safety Switch
US$ 350 - 3,000
/ Set
1 Set(Min. Order)
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
IECEx & ATEX Certified Stainless Steel Explosion Proof Safety Switch
-
IECEx & ATEX Certified Full Plastic Explosion Proof Isolation Switch
-
IECEx & ATEX Certified Stainless Steel Explosion Proof Isolation Switch
-
Full Plastic Empty Enclosure of Control Box
-
Hot Sale Zone 1 Explosion Proof LED90W/120W/160W Light Fittings Quality Choice
-
ATEX and IECEX Certified Explosion Proof LED Lighting Fixture 30W 45W 60W
Product Details
| Place of Origin | Zhejiang, China | Brand Name | CZ | |
| Model Number | CZ053 | Max. Current | 180A | |
| Max. Voltage | 690V |
Product Description

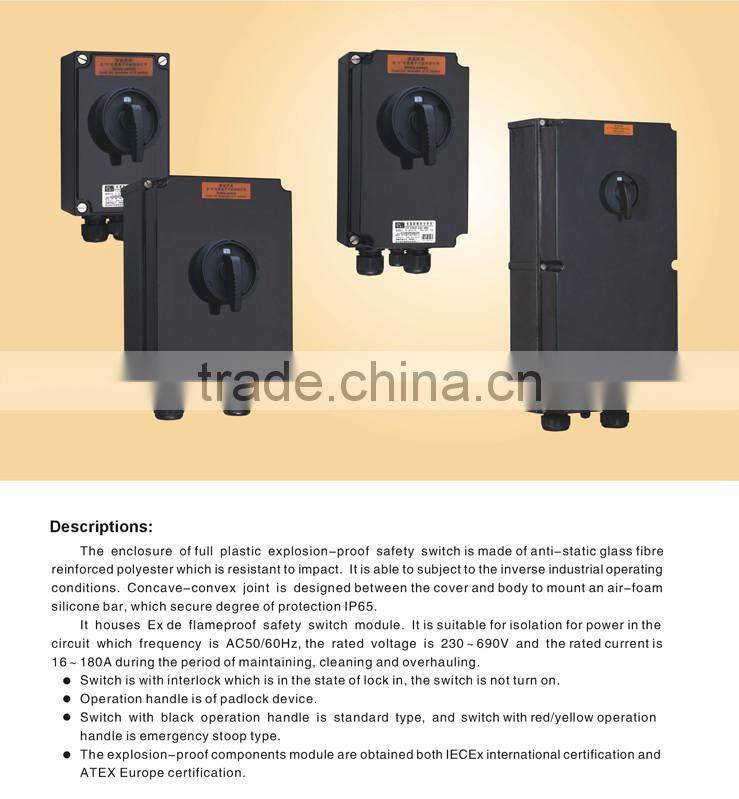

Description:

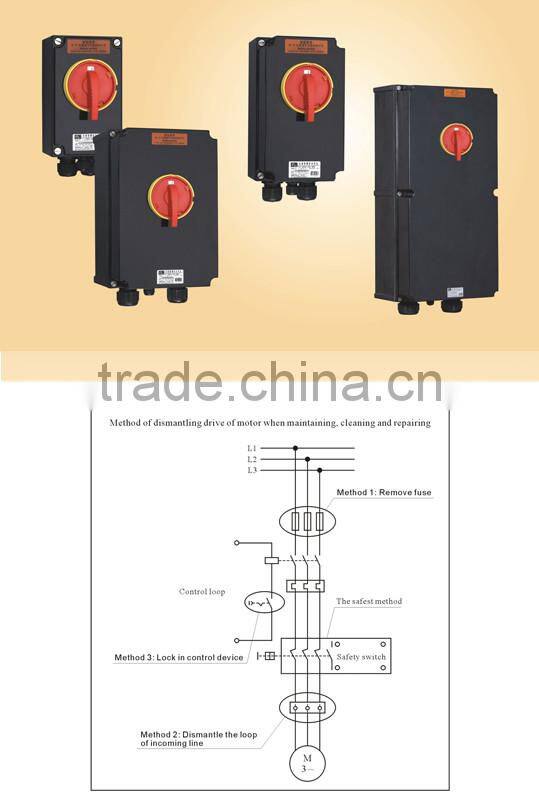

Method of dismantling drive of motor:
16/25A Explosion-Proof Safety Switch:
Main Technical Data:
| Ex mark | Ex de IIC T5/T6 Gb Ex tb IIIC T5/T5 Db |
| Intended use | Can be used in zone 1, zone 2 and zone 21, zone 22 |
| Ambient temperature | -40℃≤Ra≤40℃(T6)/55℃(T5) |
| Degree of protection | IP65 |
| Rated current | Max to 25A |
| Terminal | 2x4mm2 |
| Capcity of switch | AC 3 230V 25A/400V 25A/500V 20A/690V 16A |
| Auxiliary contact | (I/ON- Time delay O/OFF- Advance) 3 Poles: 1NO 6 Poles: 1NO+1NC |
| Material of enclosure | GRP |

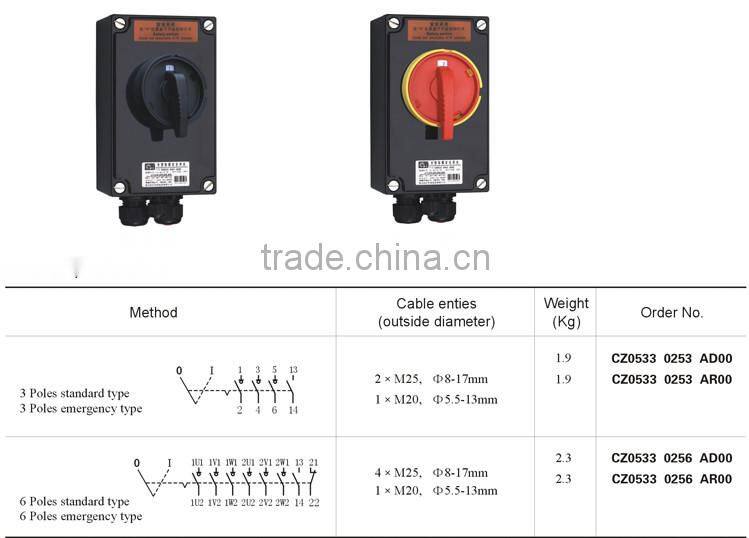

Order Specification:

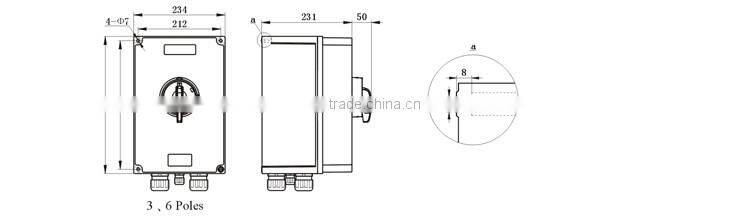

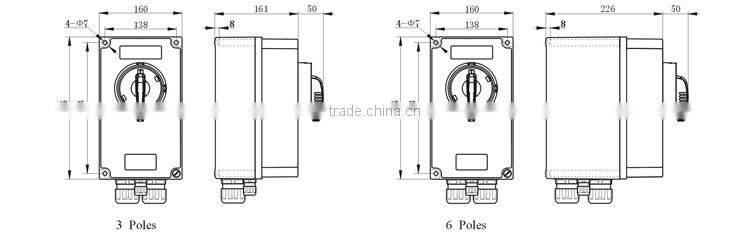

Outline dimensions:
32/40A Explosion-Proof Safety Switch:
Main Technical Data:
| Ex mark | Ex de IIC T5/T6 Gb Ex tb IIIC T5/T6 Db |
| Intended use | Can be used in zone 1, zone 2 and zone 21, zone 22 |
| Ambient temperature | -40℃≤Ra≤40℃(T6)/55℃(T5) |
| Degree of protection | IP65 |
| Rated current | Max to 40A |
| Terminal | 2x10mm2 |
| Auxiliary terminal | 2x4mm2 |
| Capcity of switch | AC 3 230V 40A/400V 40A/500V 40A/690V 32A |
| Auxiliary contact | (I/ON- Time delay O/OFF- Advance) 3 Poles: 1NO 6 Poles: 1NO+1NC |
| Material of enclosure | GRP |
Order Specification:
Outline dimensions:
63/80A Explosion-Proof Safety Switch:
Main Technical Data:
| Ex mark | Ex de IIC T5/T6 Gb Ex tb IIIC T5/T6 Db |
| Intended use | Can be used in zone 1, zone 2 and zone 21, zone 22 |
| Ambient temperature | -40℃≤Ra≤40℃(T6)/55℃(T5) |
| Degree of protection | IP65 |
| Rated current | Max to 80A |
| Terminal | 1x35mm2 |
| Auxiliary terminal | 2x4mm2 |
| Capcity of switch | AC 3 230V 80A/400V 80A/500V 80A/690V 63A |
| Auxiliary contact | (I/ON- Time delay O/OFF- Advance) 3 Poles: 1NO 6 Poles: 1NO+1NC |
| Material of enclosure | GRP |

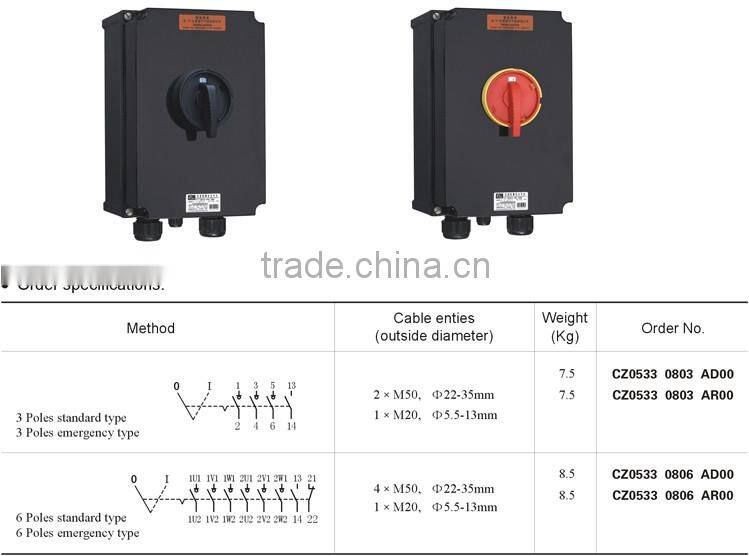

Order Specification:
Outline dimensions:
125/180A Explosion-Proof Safety Switch:
Main Technical Data:
| Ex mark | Ex de IIC T5/T6 Gb Ex tb IIIC T5/T6 Db |
| Intended use | Can be used in zone 1, zone 2 and zone 21, zone 22 |
| Ambient temperature | -40℃≤Ra≤40℃(T6)/55℃(T5) |
| Degree of protection | IP65 |
| Rated current | Max to 180A |
| Terminal | 125A 1x50/70mm2 180A 1x120mm2 |
| Auxiliary terminal | 2x4mm2 |
| Capcity of switch | AC 3 230V 180A/400V 180A/500V 150A/690V 125A |
| Auxiliary contact | (I/ON- Time delay O/OFF- Advance) 3 Poles: 1NO 6 Poles: 1NO+1NC |
| Material of enclosure | GRP |

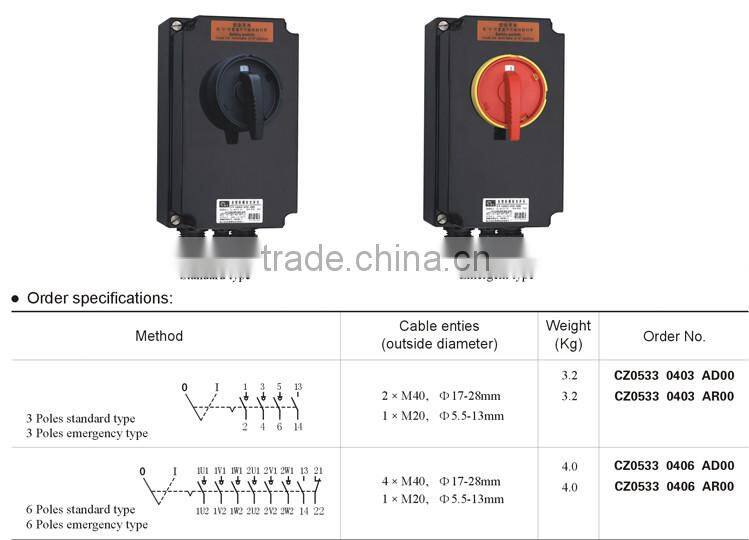

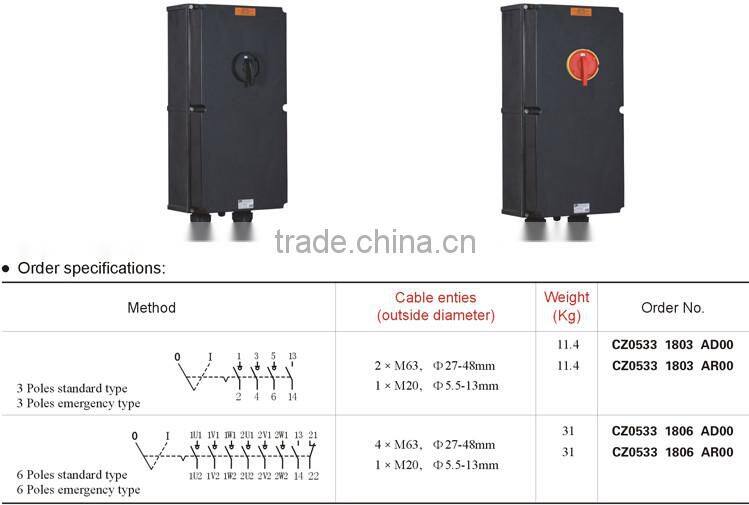

Order Specification:

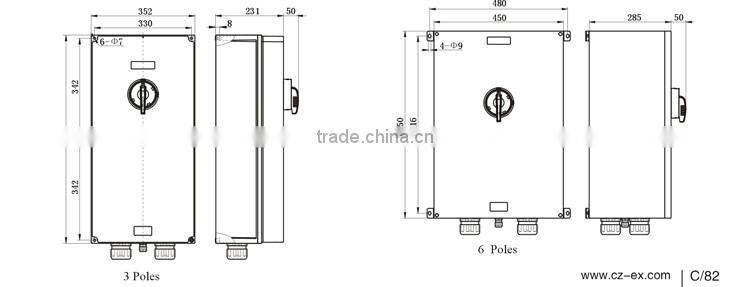

Outline dimensions:
