Home > Products > Electric&boat winches > Synthetic Rope Electric Winch

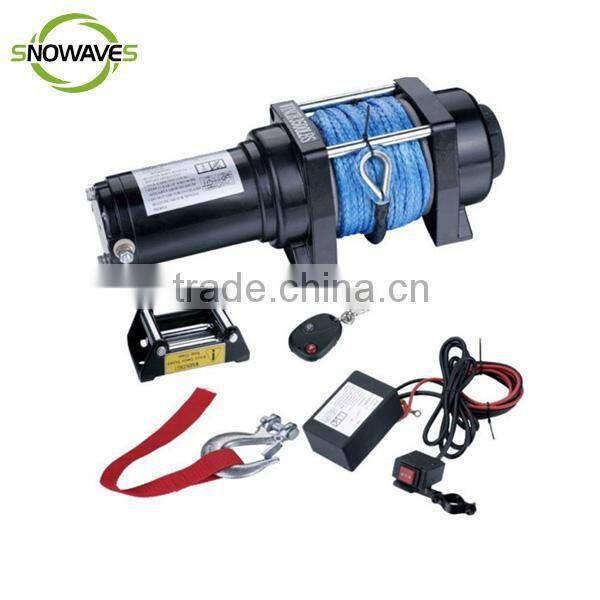

Synthetic Rope Electric Winch
- Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Snowaves Synthetic Rope Electric Winch | |
| Model Number | SW3500 Synthetic Rope Electric Winch | Power Source | Electric | |
| Application | ATV/UTV | Capacity | 3500lbs |
Product Description
Specifications
Synthetic Rope Electric WinchDC permanent magnetic motor
Planetary gear train with 135:1 gear ratio
fast speed
12v or 24v
Synthetic Rope Electric Winch
3500LB, WINCH SPECIFICATIONS
Rated line pull | 3500lbs(1588kgs) single line |
Motor | Permanent magnet, 1.2kw/1,4hp |
Gear reduction ratio | 135:1 |
Gear train | 3 Stage Planetary |
Cable (Dia x L) | Diameter0.19”(4.8mm)Length34.4’(10.5m) |
Control | Remote switch |
Drum size (Dia x L) | 2.0”(51mm)Length2.9”(74mm) |
Clutch | Sliding Ring Gear |
Braking action | Automatic In-The-Drum |
Overall dimensions(L X W X H) | 13.4” X 4.3” X 4.4”(340mm X 110mm X 112mm) |
Mounting bolt pattern | 120mm*76mm,Ø9 |
Weight | N.W.10kg G.W.12kg |
Packing size | 410mmx350mmx210mm 1PC/CTN |
Detail:
LINE PULL AND ROPE CAPACITY IN LAYER
Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
0 | 9.5(2.9) | 26 |
500(228) | 9.2(2.8) | 69 |
1500(680) | 7.9(2.4) | 105 |
2500(1134) | 6.6(2.0) | 136 |
3500(1588) | 4.6(1.4) | 168 |
PULL, SPEED, AMPERES, VOLTS
Layer | Rated Line Pull lbs(kgs) | Total Rope on Drum ft(m) |
1 | 3500(1588) | 5.6(1.7) |
2 | 2320(1052) | 15.1(4.6) |
3 | 1975(896) | 19.7(6.0) |
4 | 1890(857) | 27.9(8.5) |
5 | 1590(721) | 34.4(10.5) |
