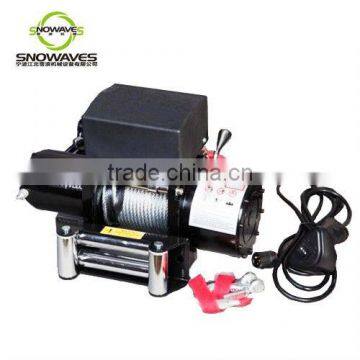

3T 12v Electric Winch With Remote Control
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Snowaves Electric Winch With Remote Control | |
| Model Number | SW6000 Electric Winch With Remote Control | Power Source | Electric | |
| Application | Auto | Capacity | 6000lbs |
Product Description
Specifications
3T 12v Electric Winch With Remote Control1.Heavy duty electric winch
2.12v or 24v to choose
3.Strong pulling off road winch
3T 12v Electric Winch With Remote Control
6000 LBS FEATURES AND SPECIFICATIONS
Rated Line Pull | 6000LBS (2722kgs) single line |
Motor | 2.0kw/2.7hp, permanent magnet |
Control | Remote switch, 11.5ft(3.5m)lead |
Gear train | 3 Stage Planetary |
Gear train ratio | 235:1 |
Clutch | Sliding Ring Gear |
Braking Action | Automatic In-The-Drum |
Drum Size | Φ2.5"(64)mm×(5.3)133.5mm |
Cable | Φ6.4mmX20m |
Overall Dimensions | 16.3"x6.3"x8.5"(415mm×160mm×217mm) |
Mounting Bolt Pattern | 165mm×114mm Φ11 |
Weight | N.W.31kg G.W.33Kg |
Packing Size | 610×350×270mm |
PULL, SPEED, AMPERES, VOLTS
Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
0 | 9.8(3.0) | 30 |
2000(907) | 7.5(2.3) | 120 |
4000(1814) | 4.9(1.5) | 210 |
6000(2722) | 2.9(0.9) | 260 |
LINE PULL AND ROPE CAPACITY IN LAYER
Layer | Rated Line Pull lbs(kgs) | Total Rope on Drum ft(m) |
1 | 6000(2722) | 15(4.6) |
2 | 4990(2263) | 15.1(8) |
3 | 4280(1941) | 43(13) |
4 | 3730(1692) | 62(19) |
5 | 3310(1501) | 66(20) |
