Home > Products > Electric&boat winches > 12000lbs 12V Electric Winch For 4x4

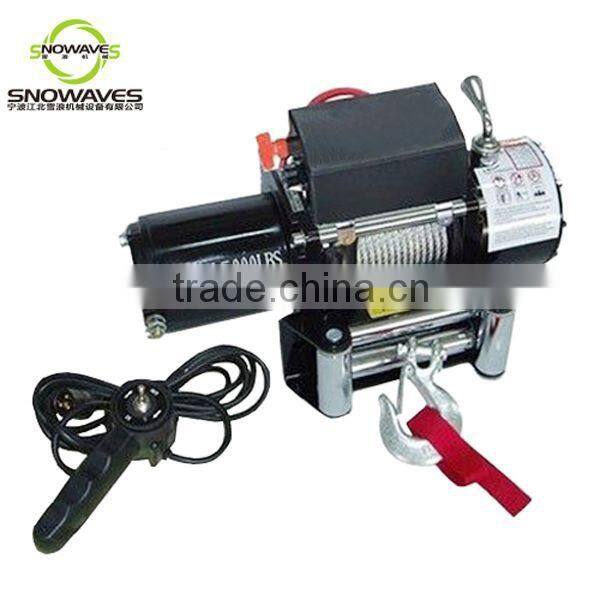

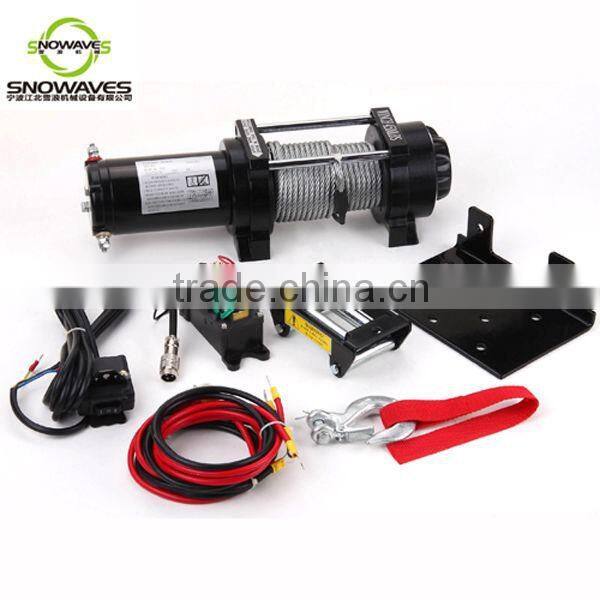

12000lbs 12V Electric Winch For 4x4
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Snowaves Electric Winch | |
| Model Number | SW12000 Electric Winch | Power Source | Electric | |
| Application | Auto | Capacity | 12000lbs |
Product Description
12000lbs 12V Electric Winch For 4x4
Electric winch for truck jeep trailer suv recovery atv quad 4wd 4x4 boat snowplow mower bulldozers
12000LB, WINCH SPECIFICATIONS
Rated Line Pull | 12000LBS (5443kgs) single line |
Motor | 3.9kw/5.35hp, series wound |
Control | Remote switch, 11.5ft(3.5m)lead |
Gear train | 3 Stage Planetary |
Gear train ratio | 265:1 |
Clutch | Sliding Ring Gear |
Braking Action | Automatic In-The-Drum |
Drum Size | Φ2.5"(64)mm×(8.8")233.5mm |
Cable | Φ9.1mmX28m |
Overall Dimensions | 19.8"x6.3"x8.5"(527mm×160mm×217mm) |
Mounting Bolt Pattern | 255mm×114mm Φ11 |
Weight | N.W.38kg G.W.40Kg |
Packing Size | 610×350×270mm |
PULL, SPEED, AMPERES, VOLTS
Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
0 | 24.9(7.6) | 80 |
2000(907) | 16.1(4.9) | 180 |
4000(1814) | 10.8(3.3) | 240 |
6000(2722) | 8.5(2.6) | 280 |
8000(3628) | 7.2(2.2) | 330 |
10000(4536) | 5.9(1.8) | 380 |
12000(5443) | 5.2(1.6) | 400 |
LINE PILL AND ROPE CAPACITY IN LAYER
Layer | Rated Line Pull lbs(kgs) | Total Rope on Drum ft(m) |
1 | 12000(5443) | 13(5) |
2 | 9530(4323) | 23(11) |
3 | 7540(3420) | 69(21) |
4 | 5950(2699) | 92(28) |
