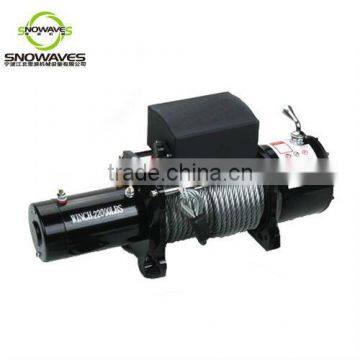

Jeep Winch for Sale
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Snowaves Jeep Winch for Sale | |
| Model Number | SW22000 Jeep Winch for Sale | Power Source | Electric | |
| Application | Auto | Capacity | 22000lbs |
Product Description
Specifications
Jeep Winch for Sale1.Electric winch factory
2.Wireless remote control electric winch
3.12V or 24V to choose
Jeep Winch for Sale
winch components and installation of connecting bolts, etc become loose or corroded, shall promptly repair or replacement.
22000LB, WINCH SPECIFICATIONS
Rated Line Pull | 22000LBS (10000kgs) |
Motor | 5.7kw/7.8hp, series wound |
Control | Remote switch, 9.7ft(3.0m) |
Gear train | 3 Stage Planetary |
Gear train ratio | 358:1 |
Clutch | Sliding Ring Gear |
Braking Action | Automatic In-The-Drum |
Drum Size | Φ2.5"(88)mm×(10.5")266mm |
Cable | Φ11.5mmX26m |
Overall Dimensions | 620mm×200mm×254mm |
Mounting Bolt Pattern | 253mm×114mm |
Weight | N.W.52kg G.W.54Kg |
Packing Size | 655×235×410mm |
PULL, SPEED, AMPERES, VOLTS
Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
0 | 21.1(6.5) | 80 |
6000(2700) | 12.0(3.7) | 230 |
12000(5443) | 8.8(2.7) | 320 |
16000(7200) | 5.8(1.8) | 370 |
22000(9090) | 4.6(1.4) | 420 |
LINE PULL AND ROPE CAPACITY IN LAYER
Layer | Rated Line Pull lbs(kgs) | Total Rope on Drum ft(m) |
1 | 22000(10000) | 16.3(5) |
2 | 19910(9050) | 36.4(11) |
3 | 16637(7562) | 60(18.4) |
4 | 15874(7215) | 85(26) |
