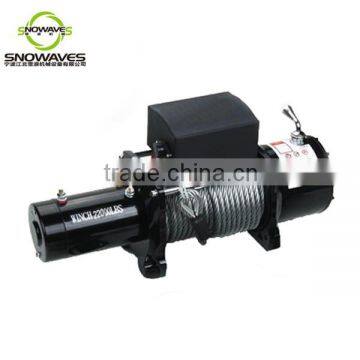

22000lbs 12V Car Winch
- Ningbo
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Snowaves Car Winch | |
| Model Number | SW22000 Car Winch | Power Source | Electric | |
| Application | Auto | Capacity | 22000lbs Car Winch |
Product Description
Specifications
22000lbs 12V Car Winch4x4 off road winch 12v 24v
cheap electric winch
remote controlled car winch
offroad car winch
22000lbs 12V Car Winch
winch cable shall be used with special grease. When it appears burr, fracture and crease, new cable should be replaced it as soon as possible.
22000LB, WINCH SPECIFICATIONS
Rated Line Pull | 22000LBS (10000kgs) |
Motor | 5.7kw/7.8hp, series wound |
Control | Remote switch, 9.7ft(3.0m) |
Gear train | 3 Stage Planetary |
Gear train ratio | 358:1 |
Clutch | Sliding Ring Gear |
Braking Action | Automatic In-The-Drum |
Drum Size | Φ2.5"(88)mm×(10.5")266mm |
Cable | Φ11.5mmX26m |
Overall Dimensions | 620mm×200mm×254mm |
Mounting Bolt Pattern | 253mm×114mm |
Weight | N.W.52kg G.W.54Kg |
Packing Size | 655×235×410mm |
PULL, SPEED, AMPERES, VOLTS
Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
0 | 21.1(6.5) | 80 |
6000(2700) | 12.0(3.7) | 230 |
12000(5443) | 8.8(2.7) | 320 |
16000(7200) | 5.8(1.8) | 370 |
22000(9090) | 4.6(1.4) | 420 |
LINE PULL AND ROPE CAPACITY IN LAYER
Layer | Rated Line Pull lbs(kgs) | Total Rope on Drum ft(m) |
1 | 22000(10000) | 16.3(5) |
2 | 19910(9050) | 36.4(11) |
3 | 16637(7562) | 60(18.4) |
4 | 15874(7215) | 85(26) |
