Home > Products > Electric&boat winches > 10000lbs 4x4 winch

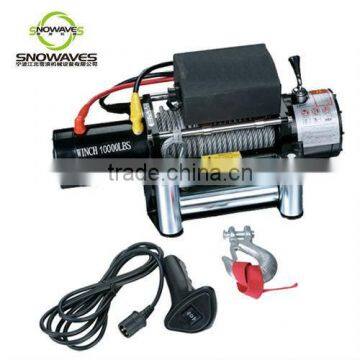

10000lbs 4x4 winch
US$ 212.25 - 231.54
/ Piece
10 Pieces(Min. Order)
- Ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | snowaves | |
| Model Number | 10000lbs 4x4 winch | Power Source | Electric | |
| Application | Auto | Capacity | 4536kgs |
Product Description
Specifications
10000lbs 4x4 winchfor auto rescue
12 Voltage
38kg weight
527mmx160mmx217mm external
10000lbs 4x4 winch
Detail:
| Specification | |
| Rated line pull | 10000lbs(4536kgs) |
| Motor:permanent magnet | 12V:Input:4.8kw/6.4hp;Output:2.3kw/3.1hp |
| 24V:Input:6.0kw/8.1hp;Output:3.0kw/4.0hp | |
| Gear reduction ration | 210:1(Low speed) 29:1(Fast speed) |
| Cable(Dia.xL) | Φ3/8"X85' (Φ9.2mmX26m) |
| Drum size(Dia.xL) | Φ2.48"X8.8' (Φ63mmX223mm) |
| Mounting bolt pattern | 10.0" X4.5"(254mmx114.3mm) 4-M10 |
| Pull, speed, Amperes, Volts(First layer) | ||||
| Low speed | Fast speed | current A | ||
Line Pull lbs(kgs) | Line speed Ft/min(m/min) | Line Pull lbs(kgs) | Line speed Ft/min(m/min) | |
| 12V DC 24V DC | 12V DC 24V DC | 12V DC 24V DC | ||
| 0 | 23.0(7.0) 28.2(8.6) | 0 | 147.6(45) 147.6(45) | 80 70 |
| 4000(1814) | 13.8(4.2) 19.7(6.0) | 556(252) | 75.5(23) 134.5(41) | 245 153 |
| 7000(3175) | 11.5(3.5) 16.7(5.1) | 972(441) | 55.8(17) 114.8(35) | 300 200 |
| 10000(4536) | 6.9(2.1) 14.4(4.4) | 1389(630) | 45.9(14) 98.4(30) | 400 250 |
| Layer of cable | Rated Line Pull lbs(kgs) | Total Rope On Drum ft(m) |
| 1 | 10000(4536) | 17.4(5.3) |
| 2 | 7969(3615) | 39.4(12.0) |
| 3 | 6624(3005) | 65.0(19.8) |
| 4 | 5667(2571) | 85.3(26.0) |
Contact Us
- Ningbo Snowaves Machanical Equipment Co., Ltd.
- Contact nameLeo Luo Chat Now
- Phone86-574-87660366
- Address90# Miaodai, Zhenhai Direct, Ningbo, Zhejiang, China., Ningbo, Zhejiang
