Home > Products > Electric&boat winches > 16800lbs/7620kgs 12 Volt Electric Winch

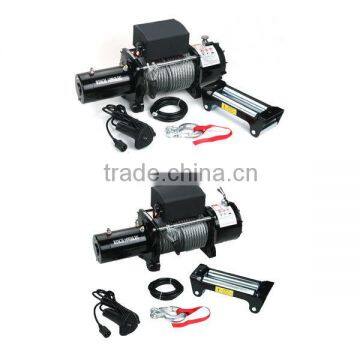

16800lbs/7620kgs 12 Volt Electric Winch
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Snowaves Electric Winch | |
| Model Number | SW16800 Electric Winch | Power Source | Electric | |
| Application | Auto | Capacity | 16800lbs Electric Winch |
Product Description
Specifications
16800lbs/7620kgs 12 Volt Electric Winch1.24v can also do
2.For off road 4x4 jeep truck mower
3.High efficiency
4.Rohs & ce
16800lbs/7620kgs 12 Volt Electric Winch
16800LB, WINCH SPECIFICATIONS
Rated Line Pull | 16800LBS (7620kgs) single line |
Motor | 4.4kw/6.0hp, series wound |
Control | Remote switch, 11.5ft(3.5m)lead |
Gear train | 3 Stage Planetary |
Gear train ratio | 358:1 |
Clutch | Sliding Ring Gear |
Braking Action | Automatic In-The-Drum |
Drum Size | Φ2.5"(88)mm×(8.8")221.5mm |
Cable | Φ10.5mmX26m |
Overall Dimensions | 23.9"x4.5"x9"(606mm×190mm×254mm) |
Mounting Bolt Pattern | 253mm×114mm Φ12 |
Weight | N.W.54kg G.W.56Kg |
Packing Size | 655×235×410mm |
PULL, SPEED, AMPERES, VOLTS
Line pull lbs(kgs) | Line speed ft/min(m/min) | Current A |
0 | 25.6(7.8) | 90 |
4800(2177) | 12.18(3.7) | 245 |
7800(3538) | 9.2(2.8) | 300 |
10800(4899) | 6.9(2.1) | 360 |
13800(6260) | 5.6(1.7) | 400 |
16800(7620) | 4.6(1.4) | 450 |
LINE PILL AND ROPE CAPACITY IN LAYER
Layer | Rated Line Pull lbs(kgs) | Total Rope on Drum ft(m) |
1 | 16800(7620) | 16(5) |
2 | 14100(6396) | 36(11) |
3 | 12500(5670) | 62(19) |
4 | 9900(4491) | 85(26) |
