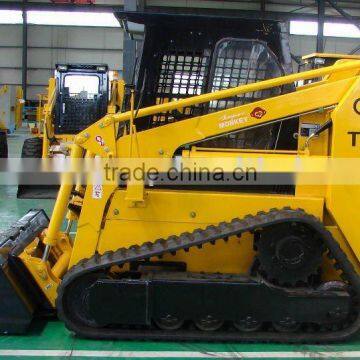

TS80 Skid steer loader

Specifications

Specifications:

1. Rated operating capacity(kg)                                    1200
2. Tipping load(kg)                                                         2400
3. Bucket capacity(m³)                                                   0.4-0.5
4. Operation weight(kg)                                             4000
5. Max. travel speed(km/h)                                        10/20
6. Hydraulic pump flow(L/min)                                  75/130
7. Fuel tank capacity(L)                                                 85
8. Overall dimensions(mm)                                 3385×1850×2025

Dimensions:

1. Height to bucket hinge pin(mm)                                    2920
2. Width with bucket(mm)                                                        1850
3. Track Width (mm)                                        320
4. Crawler ground length (mm)                               1500
5. Ground clearance(mm)                                                      200

Engine:

1. Maker/Model                                    CUMMINS  4BTA3.9-C100
2. Net power                                              80hp/2500rpm
3. Type                                        4 Cylinder in-line, Water cooled, 4 stroke,

                                                                                                            i.              Diesel engine

1. Displacement (L)                                   3.9-4.2

Standard:

(1).Open-type operator cab

(2).Hydraulic joystick controls

(3).Standard bucket

(4).Auxiliary hydraulic couplers

Optional:

(1).Enclosed operator cab with A/C(+USD1470.00)

(2).High flow hydraulic system of work(+USD1176.00)

(3).Attachments:Backhoe , Breaker ,Angle blade ,Auger, Sweeper ,Pallet fork , Combination bucket ,Mower ,Asphalt cutter ,and More
