Home > Products > skid steer loader > JC35 Skid Steer Loader

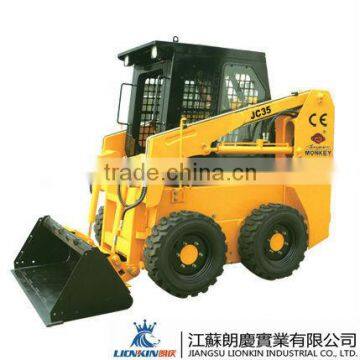

JC35 Skid Steer Loader
- 50 Set / Sets per Month
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Brand Name | LIONKIN | |
| Model Number | JC35 | Place of Origin | Shandong, China | |
| Type | Skid Steer Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 2950X1350X2000mm | Rated Load | 500KG | |
| Certification | ISO CE EPA |
Product Description
Specifications
OUR PRODUCTS IS WITH CE , ISO ,EPA CERTIFICATION
Model | JC35 | |
Engine model | 390 | |
Bore x stroke (mm) | 90X95 | |
Rated power (Kw) | 26 | |
Rotating speed ( rpm) | 2600 | |
Number of cylinders | 3 | |
Max. torque (N .m) | 102.8 | |
Displacement ( L) | 1.82 | |
Max.Speed(km/h) | 8 | |
TireModel | 8.5-15 | |
Operating load (kg) | 500 | |
Lifting | Arc upgrade | |
Bucket capacity (m³) | 0.25 | |
Rated flux (L/min) | 40 | |
Fuel tank capacity (L) | 50 | |
self weight bucket (kg) | 2200 | |
A | Overall operating height (mm) | 3300 |
B | Height to bucket hinge pin (mm) | 2725 |
C | height to top of cab (mm) | 2000 |
D | Height to bottom of level bucket(mm) | 2558 |
E | Overall length without bucket(mm) | 2300 |
F | overall length with bucket(mm) | 2950 |
G | Dumping angle at maximum height(°) | 40 |
H | Dumping height(mm) | 2050 |
I | Dumping reach(mm) | 790 |
J | Rollback o bucket on ground(°) | 30 |
K | Rollback of bucket at full height(°) | 104 |
L | Wheelbase(mm) | 897 |
M | Ground clearance(mm) | 140 |
N | Angle of departure(°) | 20 |
O | Front turning radins without bucket(mm) | 1098 |
P | Front tuning radius(mm) | 1760 |
Q | Rear tuning radius(mm) | 1296 |
R | Rear axle to bumper (mm) | 964 |
S | Tread width, enter line to centerline (mm) | 1080 |
T | Width (mm) | 1350 |
U | Bucket width (mm) | 1400 |
