Home > Products > skid steer loader > JC70 Skid steer loader

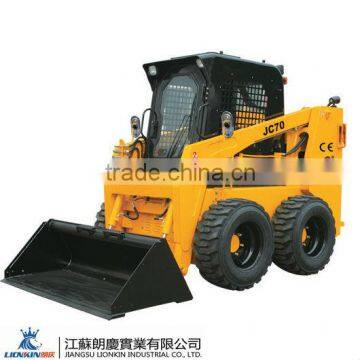

JC70 Skid steer loader
- 50 Set / Sets per Month
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Brand Name | LIONKIN | |
| Model Number | JC70 | Place of Origin | Shandong, China | |
| Type | Skid Steer Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 3540X1880X2160mm | Rated Load | 1000KG | |
| Certification | ISO CE | Warranty | ONE YEAR |
Product Description
Specifications
OUR MACHINES S WITH CE CERTIFICATIONModel | JC70 | |
Engine model | 498 | |
Bore x stroke (mm) | 98X105 | |
Rated power (Kw) | 55 | |
Rotating speed ( rpm) | 2450 | |
Number of cylinders | 4 | |
Max. torque (N .m) | 245 | |
Displacement ( L) | 3.168 | |
Max.Speed(km/h) | 12 | |
TireModel | 12-16.5 | |
Operating load (kg) | 1000 | |
Lifting | Arc upgrade | |
Bucket capacity (m³) | 0.5 | |
Rated flux (L/min) | 75 | |
Fuel tank capacity (L) | 75 | |
self weight bucket (kg) | 3500 | |
A | Overall operating height (mm) | 3690 |
B | Height to bucket hinge pin (mm) | 2920 |
C | height to top of cab (mm) | 2160 |
D | Height to bottom of level bucket(mm) | 2753 |
E | Overall length without bucket(mm) | 2780 |
F | overall length with bucket(mm) | 3540 |
G | Dumping angle at maximum height(°) | 40 |
H | Dumping height(mm) | 2250 |
I | Dumping reach(mm) | 71 |
J | Rollback o bucket on ground(°) | 30 |
K | Rollback of bucket at full height(°) | 104 |
L | Wheelbase(mm) | 1020 |
M | Ground clearance(mm) | 205 |
N | Angle of departure(°) | 20 |
O | Front turning radius without bucket(mm) | 1216 |
P | Front tuning radius(mm) | 2068 |
Q | Rear tuning radius(mm) | 1820 |
R | Rear axle to bumper (mm) | 1082 |
S | Tread width, enter line to centerline (mm) | 1500 |
T | Width (mm) | 1880 |
U | Bucket width (mm) | 1880 |
