Home > Products > skid steer loader > JC50D Skid Steer Loader

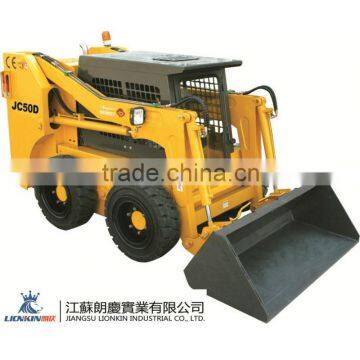

JC50D Skid Steer Loader
- QINGDAO
- T/T
You May Like
Product Details
| Condition | New | Brand Name | LIONKIN | |
| Model Number | JC50D | Place of Origin | Shandong, China | |
| Type | Skid Steer Loader | Moving Type | Wheel Loader | |
| Dimension(Long * Breadth * High) | 3490X1720X1600mm | Rated Load | 700KG | |
| Certification | ISO CE EPA | Warranty | one year |
Product Description
Specifications
OUR PRODUCTS IS WITH CE , ISO ,EPA CERTIFICATION
Model | JC50D | |
Engine model | 490 | |
Bore x stroke (mm) | 95X105 | |
Rated power (Kw) | 37 | |
Rotating speed ( rpm) | 2650 | |
Number of cylinders | 4 | |
Max. torque (N .m) | 156 | |
Displacement ( L) | 2.67 | |
Max.Speed (km/h) | 6 | |
tire(track)model | 10-16.5 | |
Operating load (kg) | 700 | |
Lifting | Arc upgrade | |
Bucket capacity (m³) | 0.3 | |
Rated flux (L/min) | 70 | |
Fuel tank capacity (L) | 70 | |
self weight bucket (kg) | 2900 | |
A | Overall operating height (mm) | 3770 |
B | Height to bucket hinge pin (mm) | 2810 |
C | height to top of cab (mm) | 1600 |
D | Height to bottom of level bucket(mm) | 2643 |
E | Overall length without bucket(mm) | 2800 |
F | overall length with bucket(mm) | 3490 |
G | Dumping angle at maximum height(°) | 40 |
H | Dumping height(mm) | 2080 |
I | Dumping reach(mm) | 700 |
J | Rollback o bucket on ground(°) | 30 |
K | Rollback of bucket at full height(°) | 104 |
L | Wheelbase(mm) | 991 |
M | Ground clearance(mm) | 205 |
N | Angle of departure(°) | 20 |
O | Front turning radius without bucket(mm) | 1228 |
P | Front tuning radius(mm) | 2010 |
Q | Rear tuning radius(mm) | 1746 |
R | Rear axle to bumper (mm) | 1208 |
S | Tread width, enter line to centerline (mm) | 1450 |
T | Width (mm) | 1720 |
U | Bucket width (mm) | 1740 |
