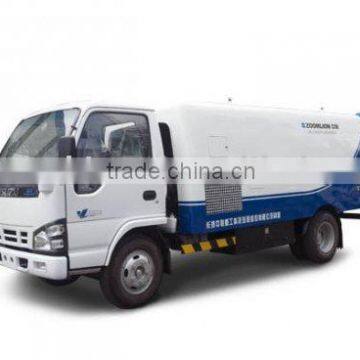

ZLJ5061GQXE3 Sewer Maintenance Machinery

Specifications

use of high-pressure water jet of the way, the dirt washed to the sewer sewer sinking, hydraulic tipping discharge of sewage to clear the job.

Vice-engine-driven high pressure pump used and hydraulic systems.

Overall dimension is small, turning diameter is small, small footprint during operation than the motor vehicle towed dredge, dredge than the large-tonnage trucks flexible, suitable for busy urban traffic road or a narrow space of the sewer pipe network and the rapid clear Efficient cleaning maintenance operations.

Adopt imported famous brand pumps and nozzles, and clear the penetration ability during operation, cleaning operation after the pipe clean, and compared with similar products in water-saving 1 / 3 or more to improve the continuing operational capacity.

display monitor is equipped with electronic control devices and alarm signals and high-pressure water pump automatic protection device, the whole and high reliability.

high-pressure hose reel hydraulic drive, can be positive, reverse, variable speed.

Vice-engine and electronically controlled high-pressure pump operating speed can be stepless speed regulation.

equipped with electric control of the water protection devices.

equipped with water before and after the shooting transmissive diamond nozzles, rotary cutting nozzle and bomb-blast nozzle can be dredging 300 ~ 600mm diameter pipe.

available in spray and water quick release connector for quick connect spray gun cleaning operations.

 Parameters

Overall dimensions (L × W × H)  mm  5990 × 1940 × 2380

Chassis Type   Qingling NKR77LLLACJAY (Country )

Chassis Engine Power  kW / r / min  96/3400

Vice-engine power   kW / r / min  57/3600

Loaded with the maximum gross mass    kg   6430

The maximum speed   km / h   100

Pump maximum pressure    MPa  20

Pump maximum flow  L / min 105

Water tank capacity    L  2500

Pipe length  m    ≥ 70
